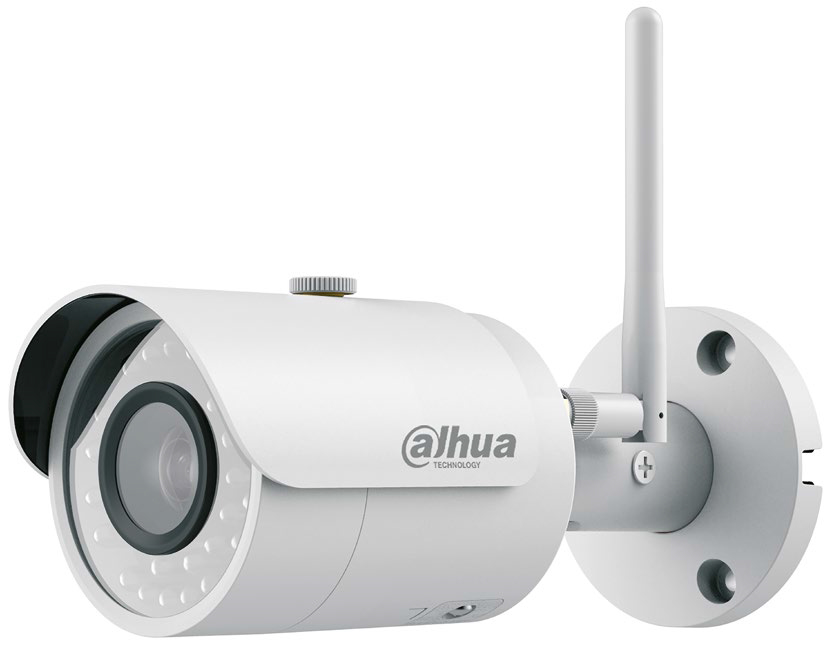

Dahua Technology Consumer IPC-HFW1235S-W-0280B-S2 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

Consumer IPC-HFW1235S-W-0280B-S2 security camera Bullet IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model IPC-HFW1235S-W-0280B-S2EAN 6939554996375

97 specifications
  • Memory128 MB
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight445 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
128 MB
Connectivity
Wired & Wireless
Type
IP security camera
Weight
445 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW1235S-W-0280B-S2
Part number
IPC-HFW1235S-W-0280B-S2
EAN / UPC
6939554996375
Also known as
Dahua Technology Consumer IPC-HFW1235S-W-0280B-S2 security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

97 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
Day/night modeYes
Remote viewingYes
Antenna typeExternal
CertificationCE (EN 60950:2000), UL: UL60950-1, FCC: FCC Part 15 Subpart B

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
WeatherproofYes

Camera

Lens viewing angle, horizontal106°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal128°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 – 1/100000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes

Lens system

Number of lenses1
Digital zoom16x
Detect distance37.3 m
Observe distance14.9 m
Recognize distance7.5 m
Focal length range2.8 mm
Fixed focusYes
Identify distance3.7 m
Maximum aperture number2
Closest focusing distance0.5 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs18

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.264B, H.265, M-JPEG
Video compression formatsH.264, H.265
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Thermal frame rate (NTSC)60 Hz
Analog signal format systemNTSC
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 24 kbps–8192 kbps H.265: 9 kbps–5632 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)49.05 dB

Network

Ethernet LANYes
Wi-FiYes
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; QoS; NTP
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

MirrorYes
Video motion detectionYes

Management features

Web-based managementYes
Reset buttonYes
Management softwareDMSS

Power

Power source typeDC
Power consumption (typical)6.5 W
DC output voltage12
DC output current1 A

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width70 mm
Depth164.9 mm
Height71 mm
Weight445 g

Packaging data

Package weight708 g

Packaging content

Number of cameras1
Cables includedLAN (RJ-45)
Screws includedYes
ManualYes
