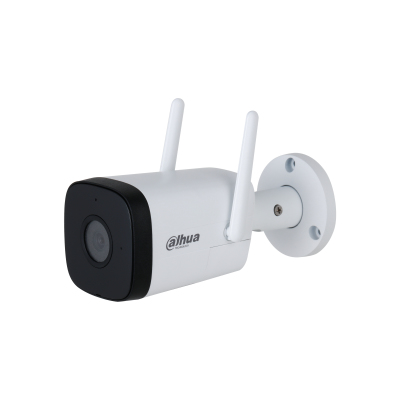

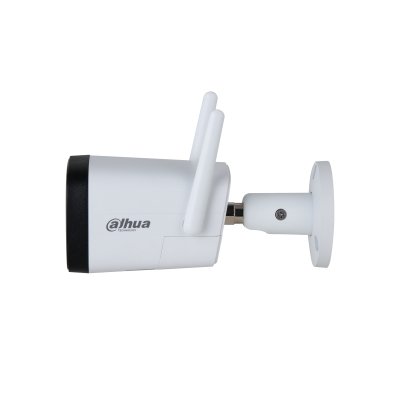

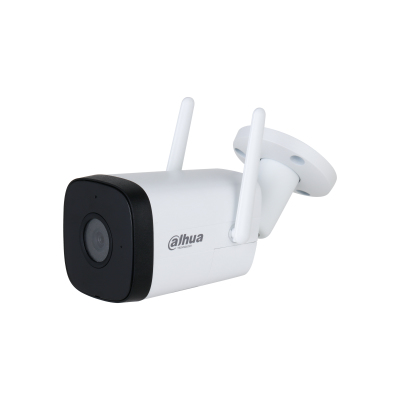

IPC -HFW1230DT-STW security camera Bullet IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model IPC-HFW1230DT-STWEAN 6923172533272
109 specifications
- Memory64 MB
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight350.1 g
- ColourWhite
- Form factorBullet
Overview
- Memory
- 64 MB
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 350.1 g
- Colour
- White
- Form factor
- Bullet
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-HFW1230DT-STW
- Part number
- IPC-HFW1230DT-STW
- EAN / UPC
- 6923172533272
- Also known as
- Dahua Technology IPC -HFW1230DT-STW security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
109 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired & Wireless |
| Maximum operating distance | 150 m |
| Day/night mode | Yes |
| Antenna type | External |
| Antennas quantity | 2 |
| Certification | CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; CE-RED:Radio Equipment Directive 2014/53/EU; FCC:47 CFR FCC Part 15, Subpart B; FCC ID:FCC PART 15C |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Field of view (FOV) angle | 120° |
| Lens viewing angle, horizontal | 100° |
| Lens viewing angle, vertical | 53° |
| Lens viewing angle, diagonal | 120° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Custom modes, Manual, Natural, Outdoor, Street lamp |
| Camera shutter type | Electronic, Mechanical |
| Camera shutter speed | 1/3 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | No |
| Detect distance | 58.8 m |
| Observe distance | 23.5 m |
| Recognize distance | 11.8 m |
| Lens diameter (wide) | 2.8 mm |
| Lens diameter (tele) | 3.6 mm |
| Focal length range | 2.8 - 3.6 mm |
| Identify distance | 5.9 m |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.6 m |
| Detect distance (tele) | 58.8 m |
| Detect distance (wide) | 46.9 m |
| Identify distance (tele) | 5.9 m |
| Identify distance (wide) | 4.7 m |
| Observe distance (tele) | 23.5 m |
| Observe distance (wide) | 18.8 m |
| Recognize distance (tele) | 11.8 m |
| Recognize distance (wide) | 9.4 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264H, H.264, H.264B, H.265 |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 960p, 1080p |
| Video recording | Yes |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Bit rate | H264: 24 kbps–4096 kbps; H265: 9 kbps–4096 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Voice codecs | G.711Mu, G.711a |
| Audio detection | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Supported network protocols | IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Number of users | 6 user(s) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Internal memory | 64 MB |
| ROM capacity | 16 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Active tampering alarm | Yes |
| Digest authentication | Yes |
| Digital watermark | Yes |
| Mirror | Yes |
| Security algorithms | HTTPS |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
| Remotely operated | Yes |
| Smartphone/tablet remote support | Yes |
| Management software | Smart PSS; DSS; DMSS |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 2.2 W |
| Power consumption (max) | 6.21 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 83.3 mm |
| Height | 114.8 mm |
| Weight | 350.1 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 588.1 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
