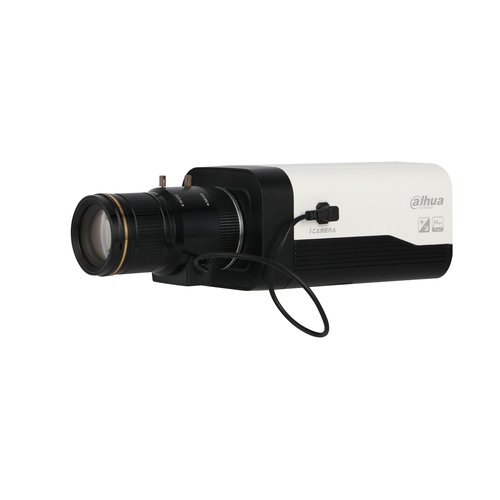

Ultra-Smart IPC-HF8331F security camera Box IP security camera
2048 x 1536 pixels
Model IPC-HF8331FEAN 6939554934674
88 specifications
- Memory1024 MB
- ConnectivityWired
- TypeIP security camera
- Weight720 g
- ColourBlack, White
- Form factorBox
Overview
- Memory
- 1024 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 720 g
- Colour
- Black, White
- Form factor
- Box
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-HF8331F
- Part number
- IPC-HF8331F
- EAN / UPC
- 6939554934674
- Also known as
- Dahua Technology Ultra-Smart IPC-HF8331F security camera Box IP security camera 2048 x 1536 pixels
Specifications
88 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Remote viewing | Yes |
| Certification | CE (EN 60950:2000), UL:UL60950-1, FCC: FCC Part 15 Subpart B |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Product colour | Black, White |
| Housing material | Metal |
Camera
| Specification | Value |
|---|---|
| Camera pan control | No |
| Camera tilt control | No |
| Minimum illumination | 0.001 lx |
| Auto flip | Yes |
| White balance | Auto, Lamp, Manual, Natural, Outdoor |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2048 x 1536 pixels |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Total megapixels | 3 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 342 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA) |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image stabilizer | Yes |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 24 - 10240 Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 2.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| Voice codecs | G.711Mu, G.711a, G.726 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x |
| Supported network protocols | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 128 GB |
| Internal memory | 1024 MB |
| ROM capacity | 128 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| Terminal block port | Yes |
Security
| Specification | Value |
|---|---|
| Anti-flicker | Yes |
| HTTPS encryption | Yes |
| Heartbeat | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Intrusion, Missing object, Tripwire |
| Mirror | Yes |
| Motion sensor | Yes |
| Privacy protection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
| Firmware upgradeable | Yes |
| Remotely operated | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC, PoE |
| AC input voltage | 24 V |
| Power consumption (max) | 6.6 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85.5 mm |
| Depth | 161.6 mm |
| Height | 74 mm |
| Weight | 720 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 920 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
