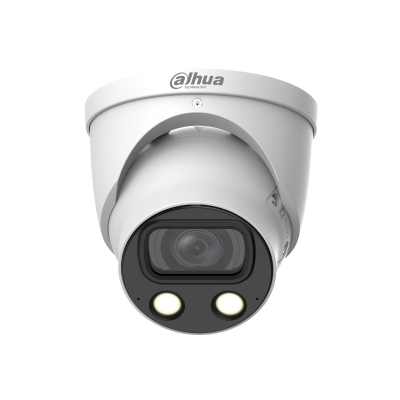

IPC-HDW5849H-ASE-LED Turret IP security camera Indoor & outdoor
3860 x 2160 pixels Ceiling
Model IPC-HDW5849H-ASE-LEDPart no. DH-IPC-HDW5849H-ASE-LED
64 specifications
- Memory2000 MB
- ConnectivityWired
- TypeIP security camera
- Weight740 g
- ColourWhite
- Form factorTurret
Overview
- Memory
- 2000 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 740 g
- Colour
- White
- Form factor
- Turret
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-HDW5849H-ASE-LED
- Part number
- DH-IPC-HDW5849H-ASE-LED
- Also known as
- Dahua Technology IPC-HDW5849H-ASE-LED Turret IP security camera Indoor & outdoor 3860 x 2160 pixels Ceiling
Specifications
64 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Built-in light | Yes |
| Dynamic range | 140 dB |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling |
| Product colour | White |
Camera
| Specification | Value |
|---|---|
| Angle of rotation | 360° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual, Natural, Outdoor, Regional custom, Street lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/100000 s |
| Number of Privacy masking areas | 4 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.2 mm (1 / 1.2") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Fixed focus | Yes |
| Maximum aperture number | 1 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | White |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3860 x 2160 pixels |
| Total megapixels | 8 MP |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| Voice codecs | PCM, G.711a, G.711Mu, G.726, G.723 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Number of users | 20 user(s) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| ROM capacity | 256 MB |
| RAM capacity | 2000 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Active tampering alarm | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection, Intrusion, Moving object, Tripwire, Vehicle detection |
| Mirror | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 3.6 W |
| Power consumption (Power over Ethernet (PoE)) | 5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 119.7 mm |
| Diameter | 12.2 cm |
| Weight | 740 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 960 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
