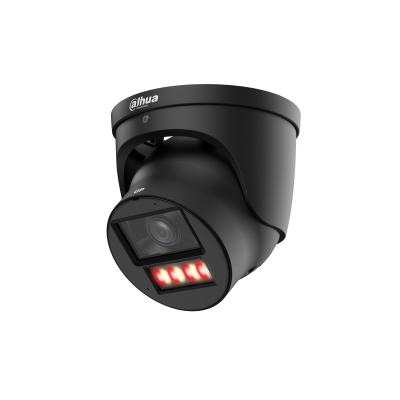

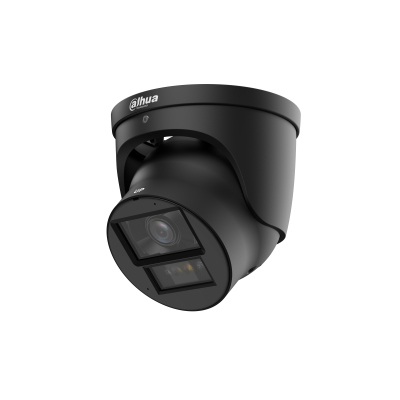

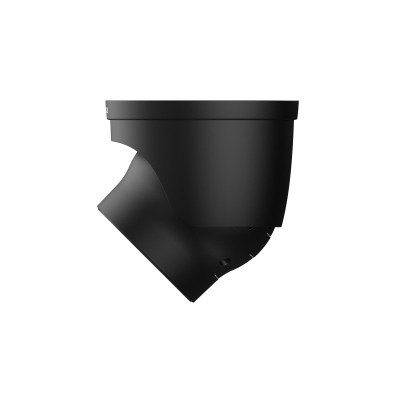

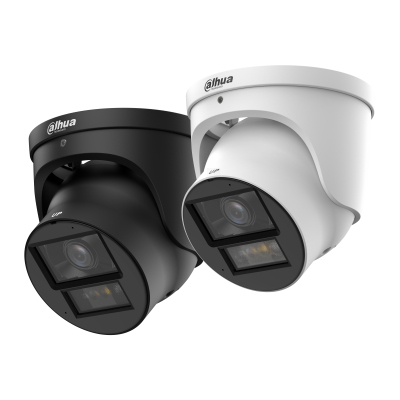

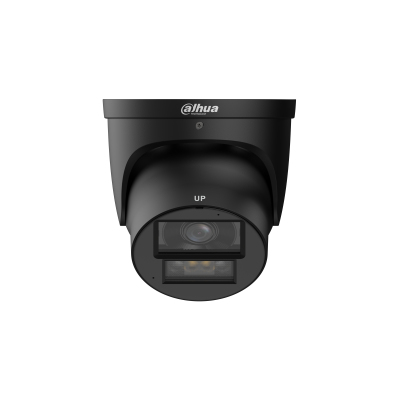

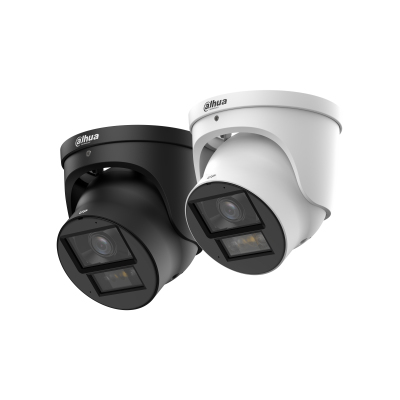

Dahua Technology IPC-HDW5659H-ASE-PV-PRO Turret IP security camera Outdoor
Dahua Technology

IPC-HDW5659H-ASE-PV-PRO Turret IP security camera Outdoor

3072 x 2048 pixels Ceiling

Model IPC-HDW5659H-ASE-PV-PROPart no. IPC-HDW5659H-ASE-PV-0360B-PRO-BLACK

100 specifications
  • Memory2000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight920 g
  • ColourBlack
  • Form factorTurret
See all specifications

Overview

Memory
2000 MB
Connectivity
Wired
Type
IP security camera
Weight
920 g
Colour
Black
Form factor
Turret
Brand
Dahua Technology
Model
IPC-HDW5659H-ASE-PV-PRO
Part numbers
IPC-HDW5659H-ASE-PV-0360B-PRO-BLACK, IPC-HDW5659H-ASE-PV-0360B-PRO-WHITE
Also known as
Dahua Technology IPC-HDW5659H-ASE-PV-PRO Turret IP security camera Outdoor 3072 x 2048 pixels Ceiling

Specifications

100 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
People counting functionYes
Wide Dynamic Range (WDR)Yes
Alarm input/outputYes
Built-in lightYes
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Design

Form factorTurret
Mounting typeCeiling
Product colourBlack
Housing materialMetal
Protection featuresDustproof, Waterproof, Vandal proof
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0003 lx
Angle of rotation360°
Lens viewing angle, horizontal93°
Lens viewing angle, vertical50°
Lens viewing angle, diagonal111°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Natural, Street lamp, Outdoor, Manual, Regional custom
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Detect distance85.6 m
Observe distance34.3 m
Recognize distance17.1 m
Identify distance8.6 m
Maximum aperture number1
Closest focusing distance4.4 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance60 m
LED typeIR

Video

Maximum resolution3072 x 2048 pixels
Total megapixels6 MP
Video formats supportedH.265, H.264, M-JPEG
Video compression formatsH.264B, H.264H
Supported graphics resolutions3072 x 2048, 3200 x 1800, 3072 x 1728, 2592 x 1944, 2688 x 1520, 2560 x 1440, 2048 x 1536 (QXGA), 2304 x 1296, 1920 x 1080 (HD 1080), 1280 x 960, 1280 x 720 (HD 720), 704 x 576, 704 x 480, 640 x 480 (VGA), 352 x 288, 352 x 240
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 kbps–16384 kbps, H.265: 3 kbps–16384 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Built-in speaker(s)Yes
Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedPCM, G.726, G.723
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Number of microphones1

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3at
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Streaming methodMulticast

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size1 TB
ROM capacity4000 MB
RAM capacity2000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1

Security

Alarm input channels1
Alarm output channels1
Digital watermarkYes
Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresTripwire, Face detection

Management features

Web browserYes

Power

Power source typePoE, DC
Power consumption (typical)4.1 W
Power consumption (max)21.6 W
Power consumption (Power over Ethernet (PoE))24.2 W
DC output voltage12
DC output current0.165 A

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width122 mm
Depth122 mm
Height127.6 mm
Weight920 g

Packaging data

Package weight1.15 kg

Packaging content

Number of cameras1
