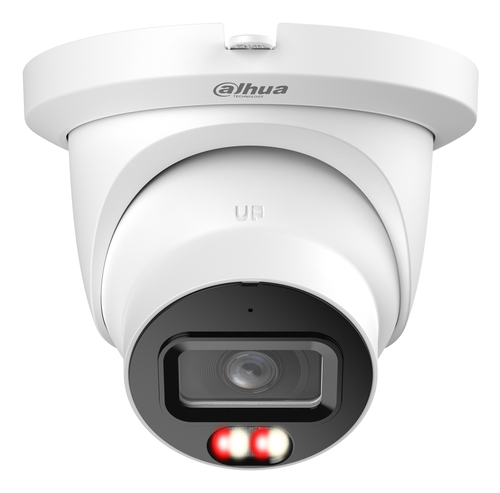

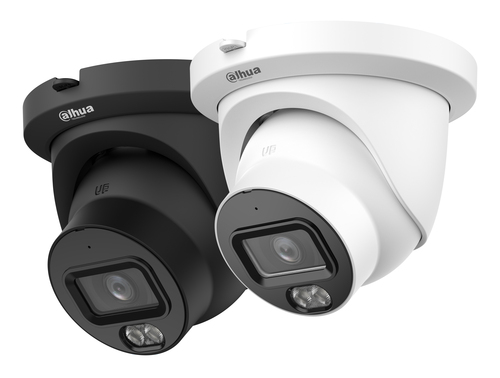

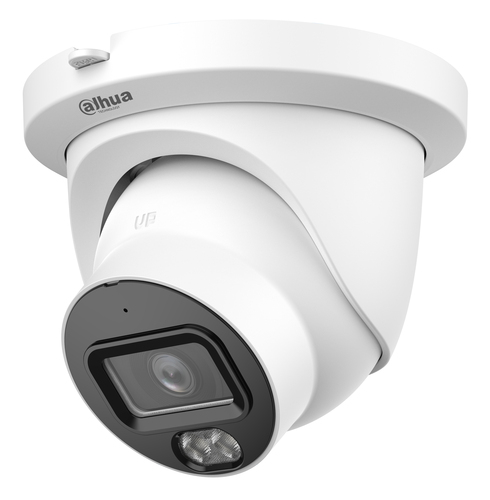

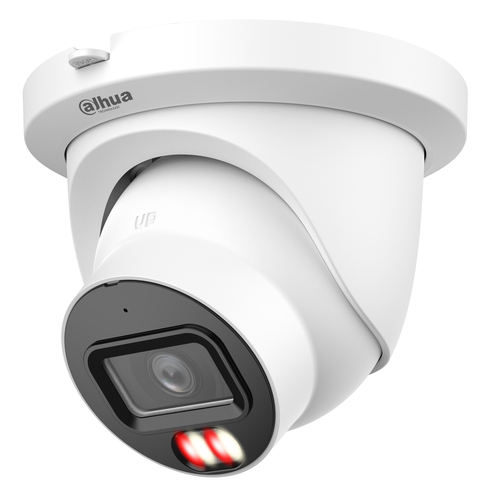

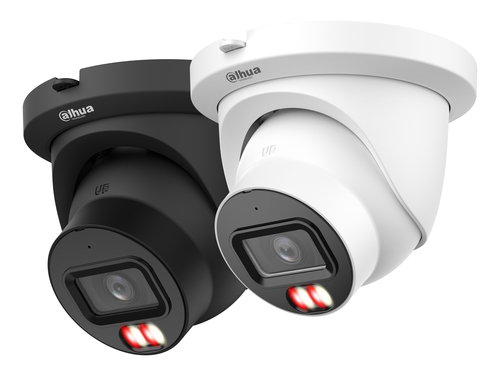

Dahua Technology WizMind IPC-HDW5559TM-ASE-IL Turret IP security camera Outdoor
Dahua Technology

WizMind IPC-HDW5559TM-ASE-IL Turret IP security camera Outdoor

2960 x 1668 pixels Ceiling

Model IPC-HDW5559TM-ASE-ILPart no. IPC-HDW5559TM-ASE-IL-0360BEAN 6937552410008

102 specifications
  • Memory2000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight530 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
2000 MB
Connectivity
Wired
Type
IP security camera
Weight
530 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
IPC-HDW5559TM-ASE-IL
Part numbers
IPC-HDW5559TM-ASE-IL-0360B, IPC-HDW5559TM-ASE-IL-0360B-BLACK
EAN / UPC
6937552410008
Also known as
Dahua Technology WizMind IPC-HDW5559TM-ASE-IL Turret IP security camera Outdoor 2960 x 1668 pixels Ceiling

Specifications

102 specifications in 22 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
People counting functionYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range56 dB

Design

Form factorTurret
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0005 lx
Angle of rotation360°
Lens viewing angle, horizontal90.3°
Lens viewing angle, vertical47.8°
Lens viewing angle, diagonal108.6°
Tilt angle range0 - 80°
Pan range0 - 360°
White balanceAuto, Natural, Street lamp, Outdoor, Manual, Regional custom
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Detect distance78 m
Observe distance31.2 m
Recognize distance15.6 m
Fixed focusYes
Identify distance7.8 m
Maximum aperture number1.6
Closest focusing distance1.5 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance50 m
LED typeIR/White

Video

Maximum resolution2960 x 1668 pixels
Total megapixels5 MP
Video compression formatsH.265, H.264, H.264H, H.264B, M-JPEG
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711 A-law, G.711 μ-law, PCM, G.726, G.723
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size1 TB
ROM capacity4000 MB
RAM capacity2000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Digital watermarkYes
HTTPS encryptionYes
Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire, People counting, Human detection, Face detection, Heat map
MirrorYes
Network access storage (NAS)Yes
Video motion detectionYes

Management features

Cloud-managedNo

Power

Power source typeDC, PoE
Power consumption (typical)4.2 W
Power consumption (max)13.3 W
Power consumption (Power over Ethernet (PoE))6.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height105.5 mm
Diameter12.2 cm
Weight530 g

Sustainability

Compliance certificatesElectromagnetic Compatibility (EMC), CE

Packaging data

Package weight710 g
Package typeBox

Packaging content

Number of cameras1
ManualYes

Technical details

Audio inputRCA
Lens mount interfaceM12
Number of video streams4

Other features

Audio outputRCA
Browser supportedIE: IE 11, Chrome: Chrome 102, Firefox: Firefox 88
