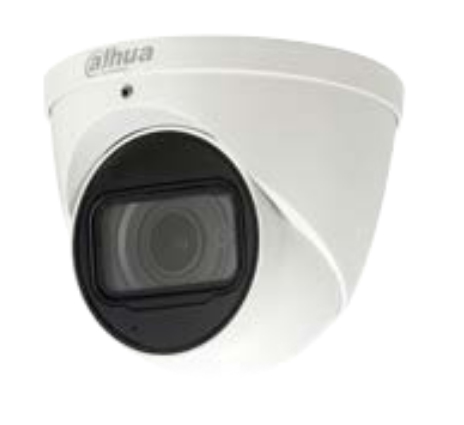

Dahua Technology Lite IPC-HDW5431R-ZE Dome IP security camera Indoor & outdoor
Dahua Technology

Lite IPC-HDW5431R-ZE Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model IPC-HDW5431R-ZEPart no. IPC-HDW5431R-ZE-27135EAN 6939554936203

88 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight600 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
600 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDW5431R-ZE
Part number
IPC-HDW5431R-ZE-27135
EAN / UPC
6939554936203
Also known as
Dahua Technology Lite IPC-HDW5431R-ZE Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

88 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationCE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresDust resistant, Water resistant
International Protection (IP) codeIP67
Fog proofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal106°
Lens viewing angle, vertical58°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Optical zoom5x
Digital zoom16x
Focal length range2.7 - 13.5 mm
FocusMotorized
Maximum aperture number1.6
Closest focusing distance0.3 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedAAC
Signal-to-Noise Ratio (SNR)50 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocolsHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Internal memory512 MB
ROM capacity32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (max)8.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width122 mm
Depth122 mm
Height104 mm
Weight600 g

Packaging data

Package weight760 g

Packaging content

Number of cameras1
