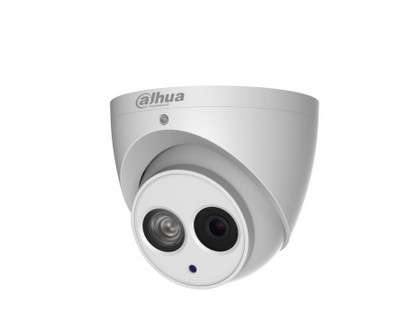

Dahua Technology Eco-savvy 3.0 IPC-HDW4431EM-AS-0280B-S4 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Eco-savvy 3.0 IPC-HDW4431EM-AS-0280B-S4 security camera Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model IPC-HDW4431EM-AS-0280B-S4

89 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight470 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
470 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDW4431EM-AS-0280B-S4
Part number
IPC-HDW4431EM-AS-0280B-S4
Also known as
Dahua Technology Eco-savvy 3.0 IPC-HDW4431EM-AS-0280B-S4 security camera Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

89 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Remote viewingYes
CertificationCE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresDust resistant, Water resistant
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.04 lx
Angle of rotation360°
Lens viewing angle, horizontal104°
Lens viewing angle, vertical58°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter speed1/3(4) - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Digital zoom16x
Detect distance56 m
Observe distance22 m
Recognize distance11 m
Identify distance6 m
Maximum aperture number1.6
Closest focusing distance1.1 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520
Supported video modes720p, 1080p
Frame rate25 fps
Analog signal format systemPAL
Video streamingYes
Noise reductionYes
Back Light Compensation (BLC)Yes
Bit rateH.264: 24K - 10240Kbps; H.265: 14K - 9984Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio codecsG.711a, G.711Mu, G726, AAC
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Internal memory512 MB
ROM capacity32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Missing object, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (max)5.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)10 - 95%

Weight & dimensions

Height93.7 mm
Diameter10.6 cm
Weight470 g

Packaging data

Package weight650 g

Packaging content

Number of cameras1
