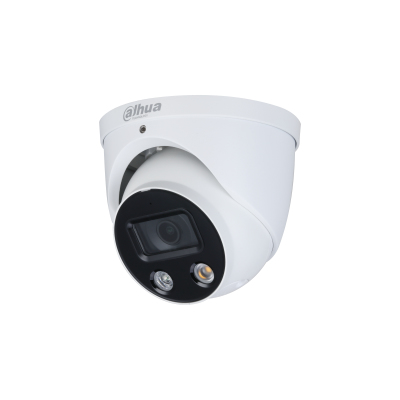

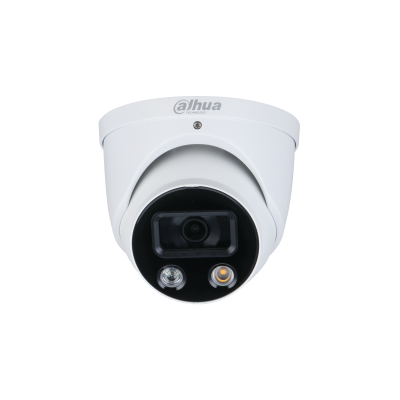

Dahua Technology IPC-HDW3849HP-AS-PV Dome IP security camera Indoor & outdoor
Dahua Technology

IPC-HDW3849HP-AS-PV Dome IP security camera Indoor & outdoor

3840 x 2160 pixels Ceiling

Model IPC-HDW3849HP-AS-PVPart no. DH-IPC-HDW3849HP-AS-PV-0280BEAN 6939554949609

86 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight754 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
754 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDW3849HP-AS-PV
Part number
DH-IPC-HDW3849HP-AS-PV-0280B
EAN / UPC
6939554949609
Also known as
Dahua Technology IPC-HDW3849HP-AS-PV Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling

Specifications

86 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.007 lx
Angle of rotation360°
Lens viewing angle, horizontal107°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal127°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 s–1/100,000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)3840 x 2160 pixels

Lens system

Number of lenses1
Maximum aperture number1.4
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 720 x 480, 720 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2592 x 1944, 2688 x 1520, 3072 x 2048, 3840 x 2160
Frame rate30 fps
Analog signal format systemPAL
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Bit rate32 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Microphone inYes
Headphone outputs1

Security

Digital watermarkYes
HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)3.1 W
Power consumption (Power over Ethernet (PoE))3.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height110.9 mm
Diameter12.2 cm
Weight754 g

Packaging data

Package weight915 g

Packaging content

Number of cameras1
