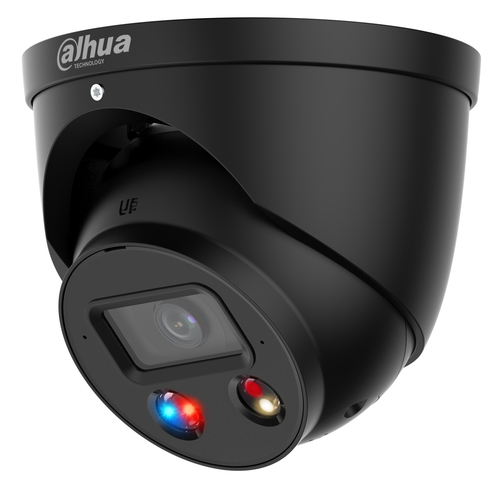

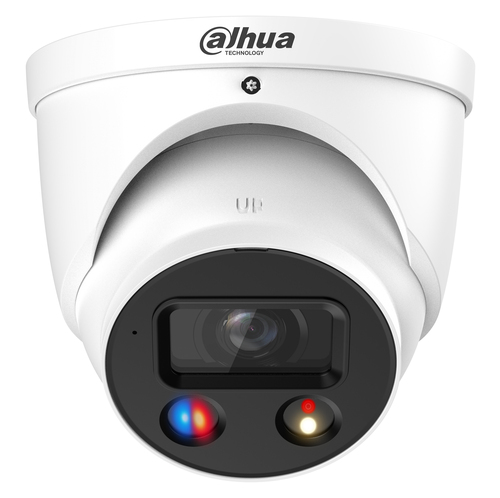

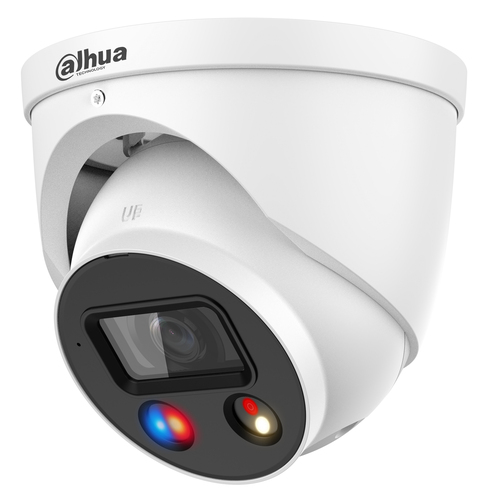

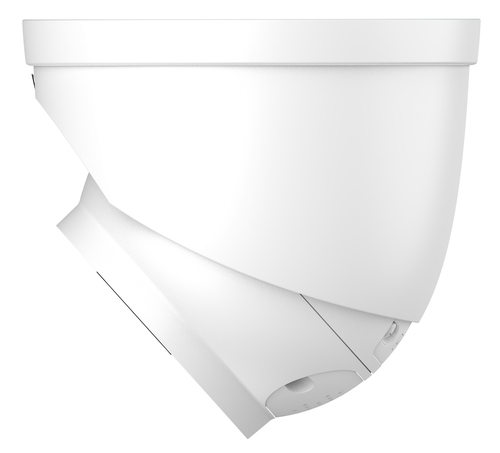

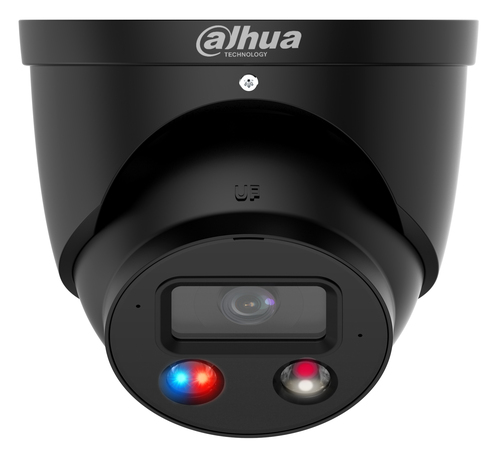

Dahua Technology IPC-HDW3849H-AS-PV Dome IP security camera Indoor & outdoor
Dahua Technology

IPC-HDW3849H-AS-PV Dome IP security camera Indoor & outdoor

3840 x 2160 pixels Ceiling

Model IPC-HDW3849H-AS-PVPart no. IPC-HDW3849H-AS-PV 2.8 MMEAN 6939554989049

104 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight750 g
  • ColourBlack, White
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
750 g
Colour
Black, White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
IPC-HDW3849H-AS-PV
Part numbers
IPC-HDW3849H-AS-PV 2.8 MM, DH-IPC-HDW3849H-AS-PV, DH-IPC-HDW3849HP-AS-PV-0280B-S5, IPC-HDW3849H-AS-PV-0360B-S5-BLACK
EAN / UPC
6939554989049, 6923172525765, 6923172580160
Also known as
Dahua Technology IPC-HDW3849H-AS-PV Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling

Specifications

104 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationCE-LVD: EN62368-1, CE-EMC, FCC

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0004 lx
Angle of rotation360°
Lens viewing angle, horizontal106°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal125°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Custom modes, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Maximum aperture number1
Closest focusing distance1.5 m
Detect distance (wide)66 m
Fixed focal length2.8 mm
Identify distance (wide)6.6 m
Observe distance (wide)26.4 m
Recognize distance (wide)13.2 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video formats supportedH.264+, H.265+
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3072 x 2048, 3840 x 2160
Supported video modes240p, 480p, 576p, 720p, 960p, 1520p, 1944p, 2160p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 kbps - 16384 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size2 GB
ROM capacity256 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Built-in sirenYes
HTTPS encryptionYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresTripwire
MirrorYes
Security algorithmsHTTPS
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)4.5 W
Power consumption (max)8.6 W
Power consumption (Power over Ethernet (PoE))5.8 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height110.9 mm
Diameter12.2 cm
Weight750 g

Packaging data

Package weight920 g

Packaging content

Number of cameras1
ManualYes
