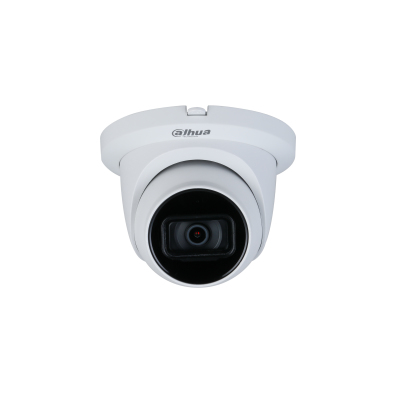

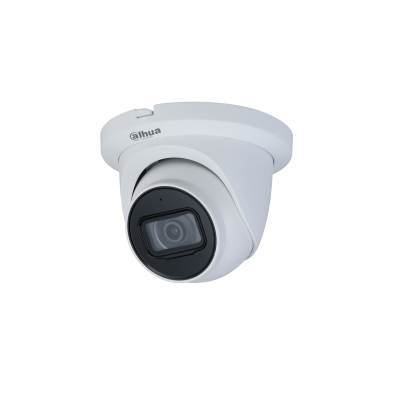

Dahua Technology WizSense IPC-HDW3841TM-AS security camera Turret IP security camera Outdoor
Dahua Technology

WizSense IPC-HDW3841TM-AS security camera Turret IP security camera Outdoor

3840 x 2160 pixels Ceiling/wall

Model IPC-HDW3841TM-AS

90 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight500 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
500 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
IPC-HDW3841TM-AS
Part number
IPC-HDW3841TM-AS
Also known as
Dahua Technology WizSense IPC-HDW3841TM-AS security camera Turret IP security camera Outdoor 3840 x 2160 pixels Ceiling/wall

Specifications

90 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD: EN62368-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorTurret
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal108°
Lens viewing angle, vertical58°
Lens viewing angle, diagonal127°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Custom modes, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Detect distance85.5 m
Observe distance34.2 m
Recognize distance17.1 m
Identify distance8.6 m
Maximum aperture number1.4
Closest focusing distance1.4 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2592 x 1944, 2688 x 1520, 3072 x 1728, 3072 x 2048, 3840 x 2160
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Power

Power source typeDC, PoE
Power consumption (max)6.9 W
Power consumption (Power over Ethernet (PoE))7.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height99.1 mm
Diameter12.2 cm
Weight500 g

Packaging data

Package weight770 g

Packaging content

Number of cameras1
