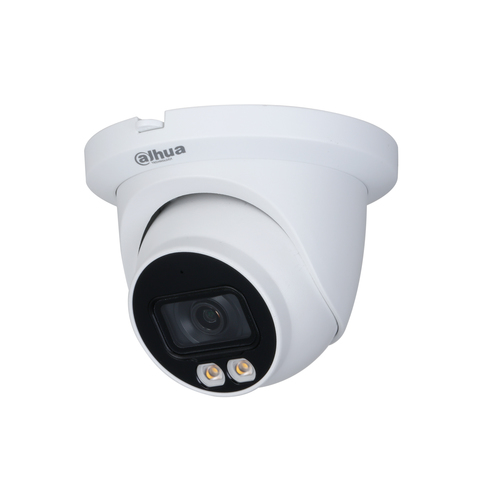

Dahua Technology IPC -HDW3549TM-AS-LED-0280B security camera Turret IP security camera Indoor & outdoor
Dahua Technology

IPC -HDW3549TM-AS-LED-0280B security camera Turret IP security camera Indoor & outdoor

2592 x 1944 pixels Ceiling

Model IPC-HDW3549TM-AS-LED-0280B

103 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight480 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
480 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
IPC-HDW3549TM-AS-LED-0280B
Part number
IPC-HDW3549TM-AS-LED-0280B
Also known as
Dahua Technology IPC -HDW3549TM-AS-LED-0280B security camera Turret IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling

Specifications

103 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorTurret
Mounting typeCeiling
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.003 lx
Angle of rotation360°
Lens viewing angle, horizontal98°
Lens viewing angle, vertical71°
Lens viewing angle, diagonal129°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Custom modes, Manual, Natural, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Panoramic camera

Number of Privacy masking areas (panoramic camera)4

Lens system

Number of lenses1
Detect distance56 m
Observe distance22.4 m
Recognize distance11.2 m
Focal length range2.8 - 3.6 mm
Fixed focusYes
Identify distance5.6 m
Maximum aperture number1
Closest focusing distance1.2 m
Detect distance (tele)80 m
Detect distance (wide)56 m
Identify distance (tele)8 m
Identify distance (wide)5.6 m
Observe distance (tele)32 m
Observe distance (wide)22.4 m
Recognize distance (tele)16 m
Recognize distance (wide)11.2 m

Night vision

Night visionYes
Night vision distance30 m
Number of illumination LEDs2

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Video formats supportedH.264, H.264B, H.265, MJPG
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2592 x 1944, 2688 x 1520
Video recordingYes
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 kbps–8192 kbps, H.265: 3 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726
Bit rate range3 - 8192 Kbit/s

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresHuman detection, Intrusion, Tripwire, Vehicle detection
MirrorYes
Privacy protectionYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)8.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width121.9 mm
Depth121.9 mm
Height99.1 mm
Diameter12.2 cm
Weight480 g

Packaging data

Package weight6.6 kg

Packaging content

Number of cameras1
