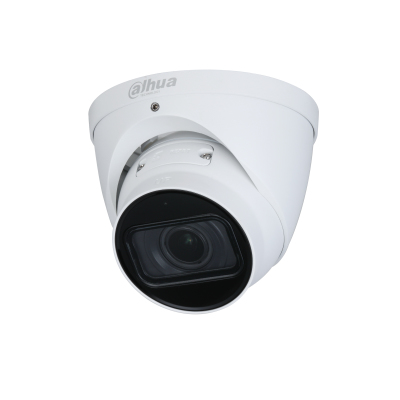

Dahua Technology Lite IPC-HDW3441T-ZAS security camera Dome IP security camera Outdoor
Dahua Technology

Lite IPC-HDW3441T-ZAS security camera Dome IP security camera Outdoor

2688 x 1520 pixels Ceiling/wall

Model IPC-HDW3441T-ZASEAN 6939554978029

91 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight685 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
685 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDW3441T-ZAS
Part number
IPC-HDW3441T-ZAS
EAN / UPC
6939554978029, 6939554984402
Also known as
Dahua Technology Lite IPC-HDW3441T-ZAS security camera Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

91 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
CertificationCE-LVD: EN60950-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Angle of rotation360°
Lens viewing angle, horizontal104°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal124°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
Maximum aperture number1.5
Closest focusing distance0.8 m
Detect distance (tele)222 m
Detect distance (wide)64 m
Identify distance (tele)22.2 m
Identify distance (wide)6.4 m
Observe distance (tele)88.8 m
Observe distance (wide)25.6 m
Recognize distance (tele)44.4 m
Recognize distance (wide)12.8 m

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresTripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Behavior analysisIntrusion detection

Power

Power source typeDC, PoE
Power consumption (max)8.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height108.3 mm
Diameter12.2 cm
Weight685 g

Packaging data

Package weight828 g

Packaging content

Number of cameras1
