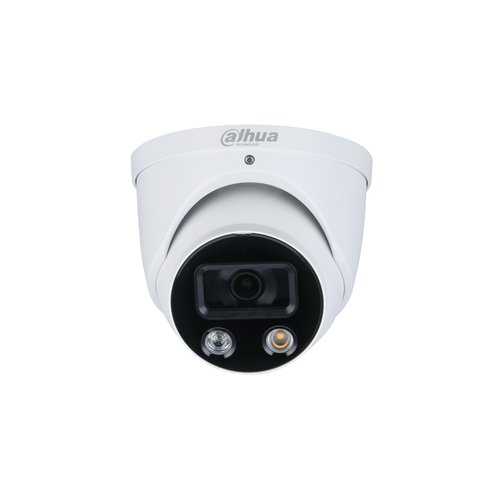

Dahua Technology WizSense IPC-HDW3249H-AS-PV-0360B security camera Turret IP security camera Indoor & outdoor
Dahua Technology

WizSense IPC-HDW3249H-AS-PV-0360B security camera Turret IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model IPC-HDW3249H-AS-PV-0360B

86 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight754 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
754 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
IPC-HDW3249H-AS-PV-0360B
Part number
IPC-HDW3249H-AS-PV-0360B
Also known as
Dahua Technology WizSense IPC-HDW3249H-AS-PV-0360B security camera Turret IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

86 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorTurret
Mounting typeCeiling
Product colourWhite
International Protection (IP) codeIP67

Camera

Minimum illumination0.0015 lx
Angle of rotation360°
Lens viewing angle, horizontal107°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal127°
Tilt angle range0 - 78°
Pan range0 - 360°
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera)56 dB
Number of Privacy masking areas (panoramic camera)4

Lens system

Number of lenses1
Detect distance46.5 m
Observe distance18.6 m
Recognize distance9.3 m
Identify distance4.6 m
Maximum aperture number1
Closest focusing distance0.8 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
Number of illumination LEDs1

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.264+, H.264B, H.265, H.265+
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Supported graphics resolutions640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Built-in speaker(s)Yes
Audio formats supportedG.711, G.723, G.726, PCM
Built-in microphoneYes

Network

Ethernet LANYes
Networking standardsIEEE 802.1x
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresHuman detection, Intrusion, Tripwire, Vehicle detection
MirrorYes

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)1.9 W
Power consumption (Power over Ethernet (PoE))7.35 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width122 mm
Depth122 mm
Height110.9 mm
Diameter12.2 cm
Weight754 g

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC)

Packaging data

Package weight915 g

Packaging content

Number of cameras1
