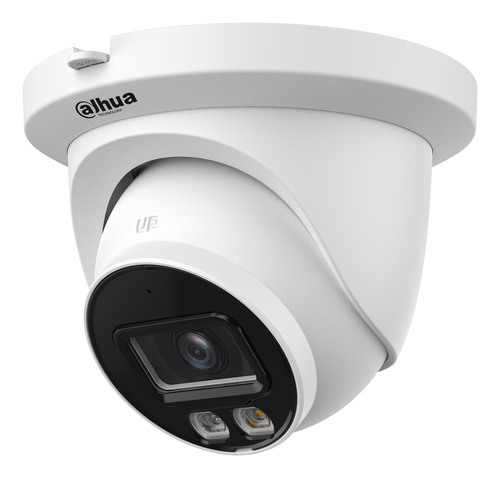

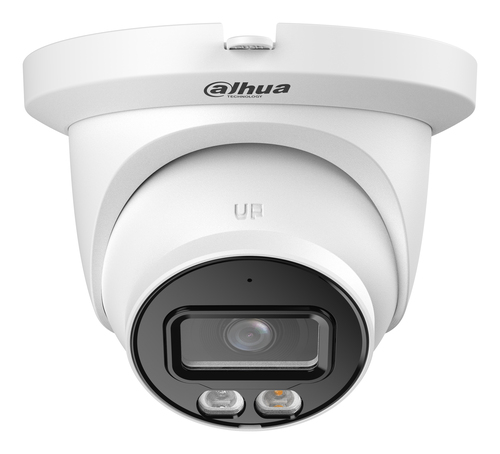

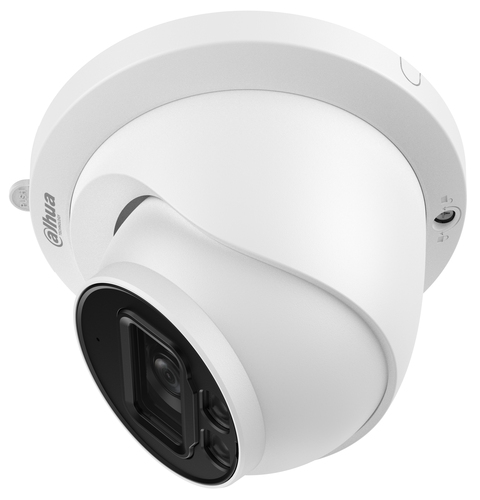

Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B security camera Turret IP security camera Indoor
Dahua Technology

WizSense IPC-HDW2649TM-S-IL-0280B security camera Turret IP security camera Indoor

3288 x 1850 pixels Ceiling/Wall/Pole

Model IPC-HDW2649TM-S-IL-0280BEAN 6939554905285

90 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight530 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
530 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
IPC-HDW2649TM-S-IL-0280B
Part number
IPC-HDW2649TM-S-IL-0280B
EAN / UPC
6939554905285
Also known as
Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B security camera Turret IP security camera Indoor 3288 x 1850 pixels Ceiling/Wall/Pole

Specifications

90 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB

Design

Form factorTurret

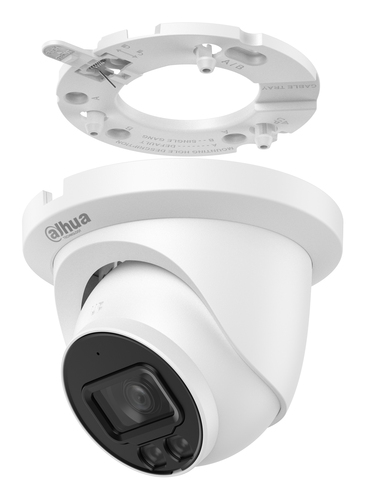

Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0007 lx
Angle of rotation360°
Lens viewing angle, horizontal112°
Lens viewing angle, vertical61°
Lens viewing angle, diagonal132°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Detect distance61.2 m
Observe distance24.5 m
Recognize distance12.2 m
Fixed focusYes
Identify distance6.1 m
Maximum aperture number1.6
Closest focusing distance1 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
Colour night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution3288 x 1850 pixels
Total megapixels6 MP
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Video recordingYes
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio formats supportedG.711 A-law, G.711 μ-law, G.726, PCM
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE, P2P
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
ROM capacity128 MB
RAM capacity256 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Human and vehicle targets classificationYes
IP address filteringYes
MirrorYes
Network access storage (NAS)Yes
Video motion detectionYes

Power

Power source typeDC, PoE
Power consumption (typical)2.5 W
Power consumption (max)4.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height99.1 mm
Diameter12.2 cm
Weight530 g

Sustainability

Compliance certificatesCE

Packaging data

Package weight670 g

Packaging content

Number of cameras1
ManualYes
