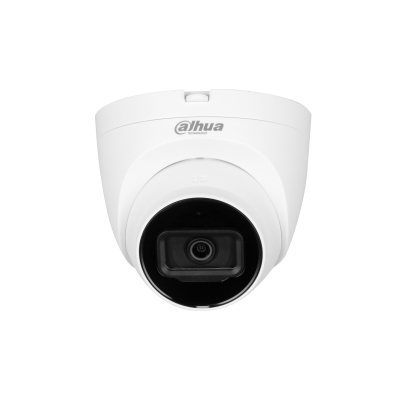

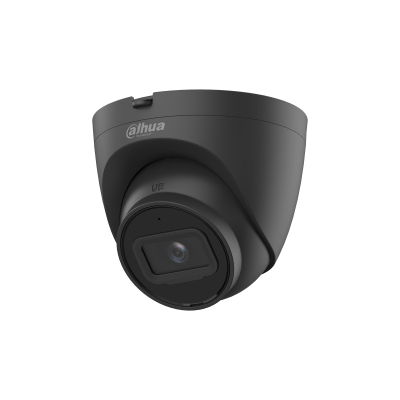

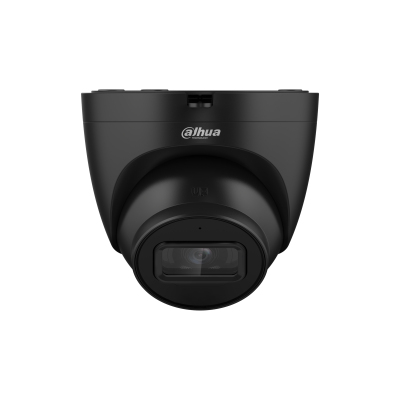

Dahua Technology WizSense IPC-HDW2441T-S security camera Turret IP security camera Indoor & outdoor
Dahua Technology

WizSense IPC-HDW2441T-S security camera Turret IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling

Model IPC-HDW2441T-S

93 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight370 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
370 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
IPC-HDW2441T-S
Part number
IPC-HDW2441T-S
Also known as
Dahua Technology WizSense IPC-HDW2441T-S security camera Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling

Specifications

93 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Dynamic range120 dB
CertificationCE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorTurret
Mounting typeCeiling
Product colourWhite
LED indicatorsYes
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.0006 lx
Angle of rotation360°
Lens viewing angle, horizontal95°
Lens viewing angle, vertical52°
Lens viewing angle, diagonal114°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes

Lens system

Number of lenses1
Detect distance63.6 m
Observe distance25.4 m
Recognize distance12.7 m
Identify distance6.4 m
Maximum aperture number1.6
Closest focusing distance0.9 m
Fixed focal length2.8 mm

Night vision

Night visionYes
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264+, H.265, H.265+
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2520 x 1520, 2560 x 1440
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726, PCM
Bit rate range12 - 6144 Kbit/s

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Number of users6 user(s)
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresHuman detection, Intrusion, Tripwire, Vehicle detection
Motion sensorYes
Privacy protectionYes
Video motion detectionYes

Management features

Web browserYes
Management softwareDSS; DMSS

Power

Power source typeDC, PoE
Power consumption2.5 mA
Power consumption (max)4.2 W
Power consumption (Power over Ethernet (PoE))3.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height100.9 mm
Diameter11 cm
Weight370 g

Packaging data

Package weight560 g

Packaging content

Number of cameras1
