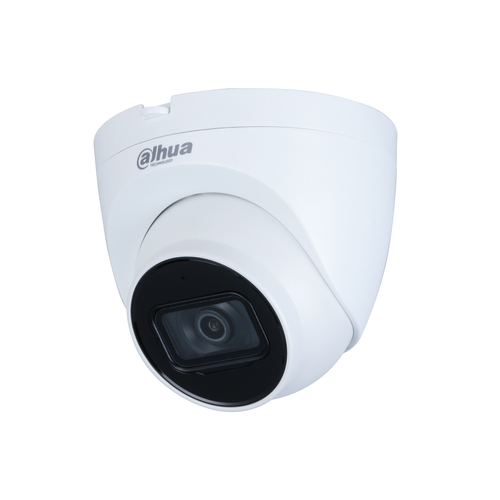

Dahua Technology Lite IPC-HDW2431T-AS-S2 security camera Turret IP security camera Indoor & outdoor
Dahua Technology

Lite IPC-HDW2431T-AS-S2 security camera Turret IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model IPC-HDW2431T-AS-S2

84 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight390 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
390 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
IPC-HDW2431T-AS-S2
Part number
IPC-HDW2431T-AS-S2
Also known as
Dahua Technology Lite IPC-HDW2431T-AS-S2 security camera Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

84 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes

Design

Form factorTurret
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal, Plastic
Protection featuresVandal proof
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.008 lx
Angle of rotation78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter speed100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Effective sensor resolution (thermal module)2688 x 1520 pixels
Progressive scanYes

Lens system

Detect distance80 m
Observe distance32 m
Recognize distance16 m
Focal length range2.8 - 3.6 mm
Maximum aperture number1.6
Minimum aperture number1.6
Aperture number (thermal module)1.6

Night vision

Night vision distance30 m
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsMPEG
Supported graphics resolutions2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps
Bit rate controlConstant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedAAC, G.711, G.711 A-law, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.1x
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Storage

Built-in HDDYes
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Detection distance30 m
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Motion sensorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, USB
Power consumption (typical)6.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width100.9 mm
Depth100.9 mm
Height100.9 mm
Diameter10.1 cm
Weight390 g
Weight (with stand)560 g

Packaging content

Number of cameras1
