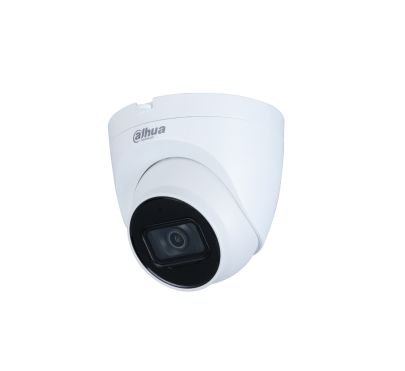

Dahua Technology Lite IPC-HDW2431T-AS-0280B-S2 security camera Turret IP security camera Indoor & outdoor
Dahua Technology

Lite IPC-HDW2431T-AS-0280B-S2 security camera Turret IP security camera Indoor & outdoor

2688 x 1520 pixels Floor

Model IPC-HDW2431T-AS-0280B-S2EAN 6939554971921

84 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight390 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
390 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
IPC-HDW2431T-AS-0280B-S2
Part number
IPC-HDW2431T-AS-0280B-S2
EAN / UPC
6939554971921
Also known as
Dahua Technology Lite IPC-HDW2431T-AS-0280B-S2 security camera Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Floor

Specifications

84 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes

Design

Form factorTurret
Mounting typeFloor
Product colourWhite
Housing materialMetal, Plastic
Protection featuresVandal proof
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.008 lx
Angle of rotation78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter speed100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Effective sensor resolution (thermal module)2688 x 1520 pixels
Progressive scanYes

Lens system

Detect distance80 m
Observe distance32 m
Recognize distance16 m
Focal length range2.8 - 3.6 mm
Maximum aperture number1.6
Minimum aperture number1.6
Aperture number (thermal module)1.6

Night vision

Night vision distance30 m
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsMPEG
Supported graphics resolutions2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps
Bit rate controlConstant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedAAC, G.711, G.711 A-law, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.1x
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Storage

Built-in HDDYes
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Detection distance30 m
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Motion sensorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, USB
Power consumption (typical)6.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width100.9 mm
Depth100.9 mm
Height100.9 mm
Diameter10.1 cm
Weight390 g
Weight (with stand)560 g

Packaging content

Number of cameras1
