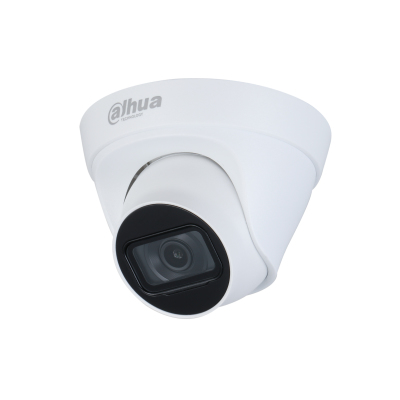

Dahua Technology Entry IPC-HDW1431T1-S4 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Entry IPC-HDW1431T1-S4 security camera Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/Wall/Pole

Model IPC-HDW1431T1-S4EAN 6939554979637

83 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight250 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
250 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDW1431T1-S4
Part number
IPC-HDW1431T1-S4
EAN / UPC
6939554979637
Also known as
Dahua Technology Entry IPC-HDW1431T1-S4 security camera Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/Wall/Pole

Specifications

83 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourBlack, White
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.03 lx
Angle of rotation360°
Lens viewing angle, horizontal93°
Lens viewing angle, vertical53°
Lens viewing angle, diagonal111°
Tilt angle range0 - 78°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter speed1/3 s–1/100000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Number of lenses1
Focal length range2.8 - 3.6 mm
Maximum aperture number2
Closest focusing distance1.4 m
Detect distance (tele)80 m
Detect distance (wide)50 m
Identify distance (tele)8 m
Identify distance (wide)15.1 m
Observe distance (tele)32 m
Observe distance (wide)22.4 m
Recognize distance (tele)16 m
Recognize distance (wide)11.2 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264B, H.265
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes720p, 1080p
Video recordingYes
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

MirrorYes
Security algorithms802.1x RADIUS, HTTPS

Power

Power source typeDC, PoE
Power consumption (typical)5.1 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 55 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height85.5 mm
Diameter10.9 cm
Weight250 g

Packaging data

Package weight370 g

Packaging content

Number of cameras1
