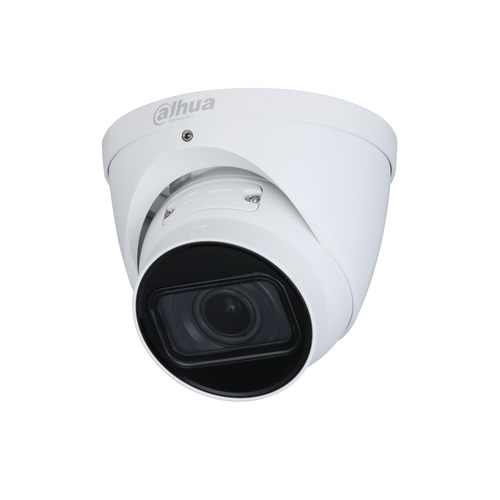

Dahua Technology Entry IPC-HDW1431T-ZS-2812-S4 security camera Turret IP security camera Indoor & outdoor
Dahua Technology

Entry IPC-HDW1431T-ZS-2812-S4 security camera Turret IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling

Model IPC-HDW1431T-ZS-2812-S4EAN 6939554979347

92 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight690 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
690 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
IPC-HDW1431T-ZS-2812-S4
Part number
IPC-HDW1431T-ZS-2812-S4
EAN / UPC
6939554979347
Also known as
Dahua Technology Entry IPC-HDW1431T-ZS-2812-S4 security camera Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling

Specifications

92 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorTurret
Mounting typeCeiling
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.03 lx
Angle of rotation360°
Lens viewing angle, horizontal98 - 31°
Lens viewing angle, vertical55 - 18°
Lens viewing angle, diagonal116 - 36°
Tilt angle range0 - 78°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Panoramic camera

Number of Privacy masking areas (panoramic camera)4

Lens system

Number of lenses1
Focal length range2.8 - 12 mm
Maximum aperture number1.7
Closest focusing distance0.8 m
Detect distance (tele)200 m
Detect distance (wide)66 m
Identify distance (tele)20 m
Identify distance (wide)6.6 m
Observe distance (tele)80 m
Observe distance (wide)26.4 m
Recognize distance (tele)40 m
Recognize distance (wide)13.2 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.265
Video compression formatsH.264, H.264B, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes720p, 1080p
Video recordingYes
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Security algorithms802.1x RADIUS, HTTPS
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)6.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width122 mm
Depth122 mm
Height108.3 mm
Diameter12.2 cm
Weight690 g

Packaging data

Package weight870 g

Packaging content

Number of cameras1
