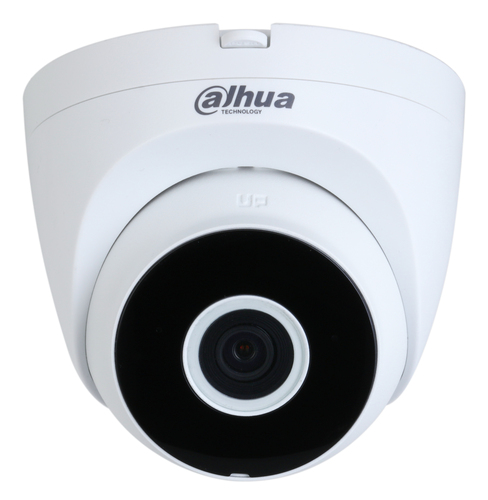

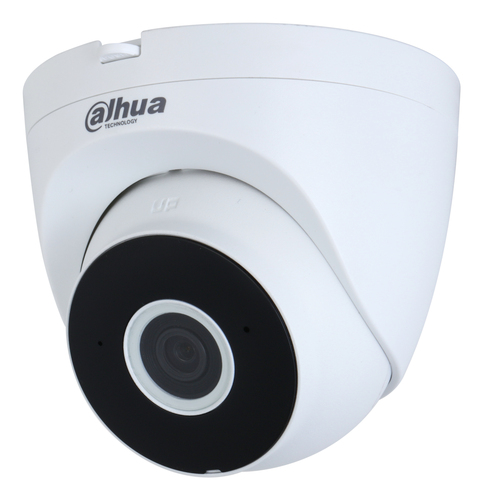

Dahua Technology IPC-HDW1430DT-SAW-0280B security camera Dome IP security camera Indoor
Dahua Technology

IPC-HDW1430DT-SAW-0280B security camera Dome IP security camera Indoor

2560 x 1440 pixels Ceiling/Wall/Pole

Model IPC-HDW1430DT-SAW-0280BEAN 6923172540270

83 specifications
  • Memory64 MB
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight316.9 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
64 MB
Connectivity
Wired & Wireless
Type
IP security camera
Weight
316.9 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDW1430DT-SAW-0280B
Part number
IPC-HDW1430DT-SAW-0280B
EAN / UPC
6923172540270
Also known as
Dahua Technology IPC-HDW1430DT-SAW-0280B security camera Dome IP security camera Indoor 2560 x 1440 pixels Ceiling/Wall/Pole

Specifications

83 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired & Wireless
Wide Dynamic Range (WDR)Yes
Day/night modeYes

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.003 lx
Angle of rotation360°
Lens viewing angle, horizontal90°
Lens viewing angle, vertical50°
Lens viewing angle, diagonal107°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Detect distance68 m
Observe distance27.2 m
Recognize distance13.6 m
Fixed focusYes
Identify distance6.8 m
Maximum aperture number2
Closest focusing distance1 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264B, H.264H, H.265
Video recordingYes
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes

Audio

Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiYes
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsIPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, RTMP
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
ROM capacity16 MB
RAM capacity64 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

IP address filteringYes
MirrorYes
Video motion detectionYes

Power

Power source typeDC
Power consumption (typical)2 W
Power consumption (max)4.2 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height102.2 mm
Diameter11 cm
Weight316.9 g

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC)

Packaging data

Package weight463 g

Packaging content

Number of cameras1
ManualYes
