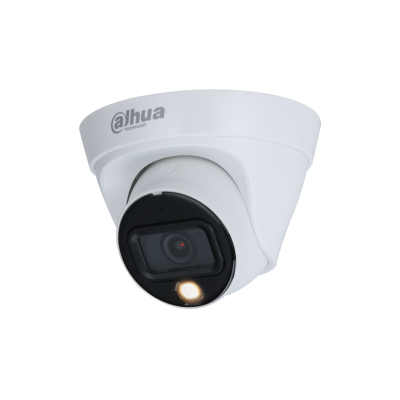

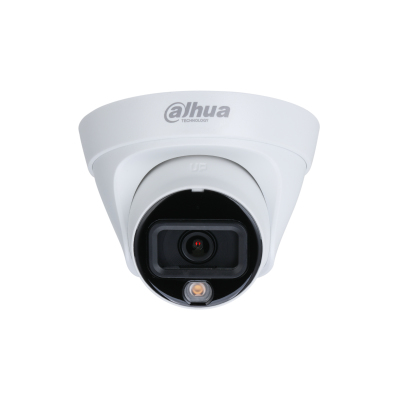

Dahua Technology Entry IPC-HDW1239T1-A-LED-S5 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Entry IPC-HDW1239T1-A-LED-S5 security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model IPC-HDW1239T1-A-LED-S5EAN 6923172540386

88 specifications
  • Memory64 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight240 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
64 MB
Connectivity
Wired
Type
IP security camera
Weight
240 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDW1239T1-A-LED-S5
Part number
IPC-HDW1239T1-A-LED-S5
EAN / UPC
6923172540386
Also known as
Dahua Technology Entry IPC-HDW1239T1-A-LED-S5 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

88 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.005 lx
Angle of rotation360°
Lens viewing angle, horizontal107°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal127°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100,000 s
Adjustment shutter speedAuto/Manual
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Detect distance43.9 m
Observe distance17.5 m
Recognize distance8.8 m
Focal length range2.8 mm
Identify distance4.4 m
Maximum aperture number1.6
Closest focusing distance0.7 m

Night vision

Night visionYes
Night vision distance15 m
Number of illumination LEDs1

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio formats supportedG.711 A-law, G.711 μ-law, G.726
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Bit rate range12 - 6144 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Number of users6 user(s)
Client interoperabilityONVIF (Profile S); CGI; P2P; Genetec

Storage

Built-in HDDNo
Internal memory64 MB
ROM capacity16 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

MirrorYes
Security algorithmsWPA-SDK
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)1.2 W
Power consumption (Power over Ethernet (PoE))2 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height85.5 mm
Diameter10.9 cm
Weight240 g

Packaging data

Package weight370 g

Packaging content

Number of cameras1

Other features

Browser supportedIE; Chrome; Firefox

Technical details

Number of video streams2
