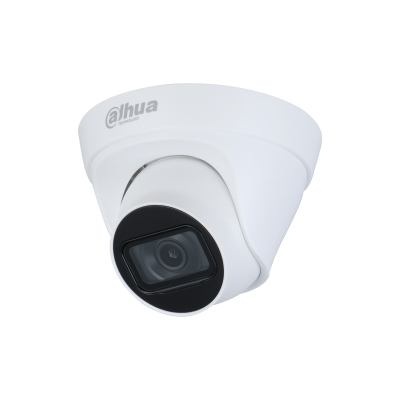

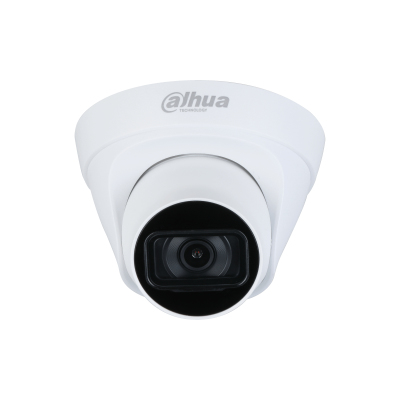

Dahua Technology Entry IPC-HDW1230T1-S5 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Entry IPC-HDW1230T1-S5 security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model IPC-HDW1230T1-S5

62 specifications
  • Memory64 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight240 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
64 MB
Connectivity
Wired
Type
IP security camera
Weight
240 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDW1230T1-S5
Part number
IPC-HDW1230T1-S5
Also known as
Dahua Technology Entry IPC-HDW1230T1-S5 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

62 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Day/night modeYes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourBlack, White
Housing materialMetal, Plastic

Camera

Minimum illumination0.01 lx
Angle of rotation360°
Tilt angle range0 - 78°
Pan range0 - 355°
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Focal length range2.8 - 3.6 mm
Closest focusing distance0.5 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264B, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate12 kbps - 6400 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast

Storage

Flash memory16 MB
Internal memory64 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

MirrorYes
Video motion detectionYes

Management features

Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)1.4 W
Power consumption (max)3.3 W
Power consumption (Power over Ethernet (PoE))2.2 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Height85.5 mm
Diameter10.9 cm
Weight240 g

Packaging data

Package weight370 g

Packaging content

Number of cameras1
