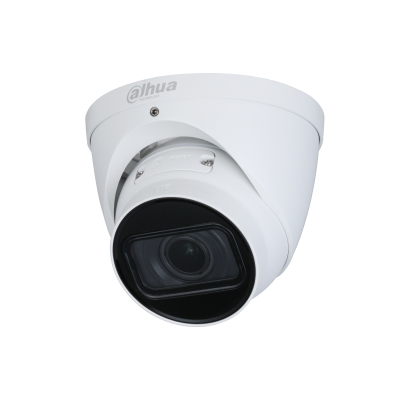

Lite IPC-HDW1230T-ZS-S4 Turret IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model IPC-HDW1230T-ZS-S4Part no. IPC-HDW1230T-ZS-2812-S5EAN 6923172510983
56 specifications
- Memory64 MB
- ConnectivityWired
- TypeIP security camera
- ColourBlack, White
- Form factorTurret
- Minimum illumination0.008 lx
Overview
- Memory
- 64 MB
- Connectivity
- Wired
- Type
- IP security camera
- Colour
- Black, White
- Form factor
- Turret
- Minimum illumination
- 0.008 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-HDW1230T-ZS-S4
- Part number
- IPC-HDW1230T-ZS-2812-S5
- EAN / UPC
- 6923172510983, 6923172525000
- Also known as
- Dahua Technology Lite IPC-HDW1230T-ZS-S4 Turret IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
56 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Certification | CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.008 lx |
| Angle of rotation | 355° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Custom modes, Manual, Natural, Outdoor, Street lamp |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Maximum aperture number | 1.7 |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video compression formats | H.264, H.265, MPEG |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | CBR |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast |
| Number of users | 6 user(s) |
| Streaming method | Multicast, Unicast |
Storage
| Specification | Value |
|---|---|
| Internal memory | 64 MB |
| ROM capacity | 46 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
| Management software | Smart PSS; DSS; DMSS |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoC |
| Power consumption (max) | 6.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
