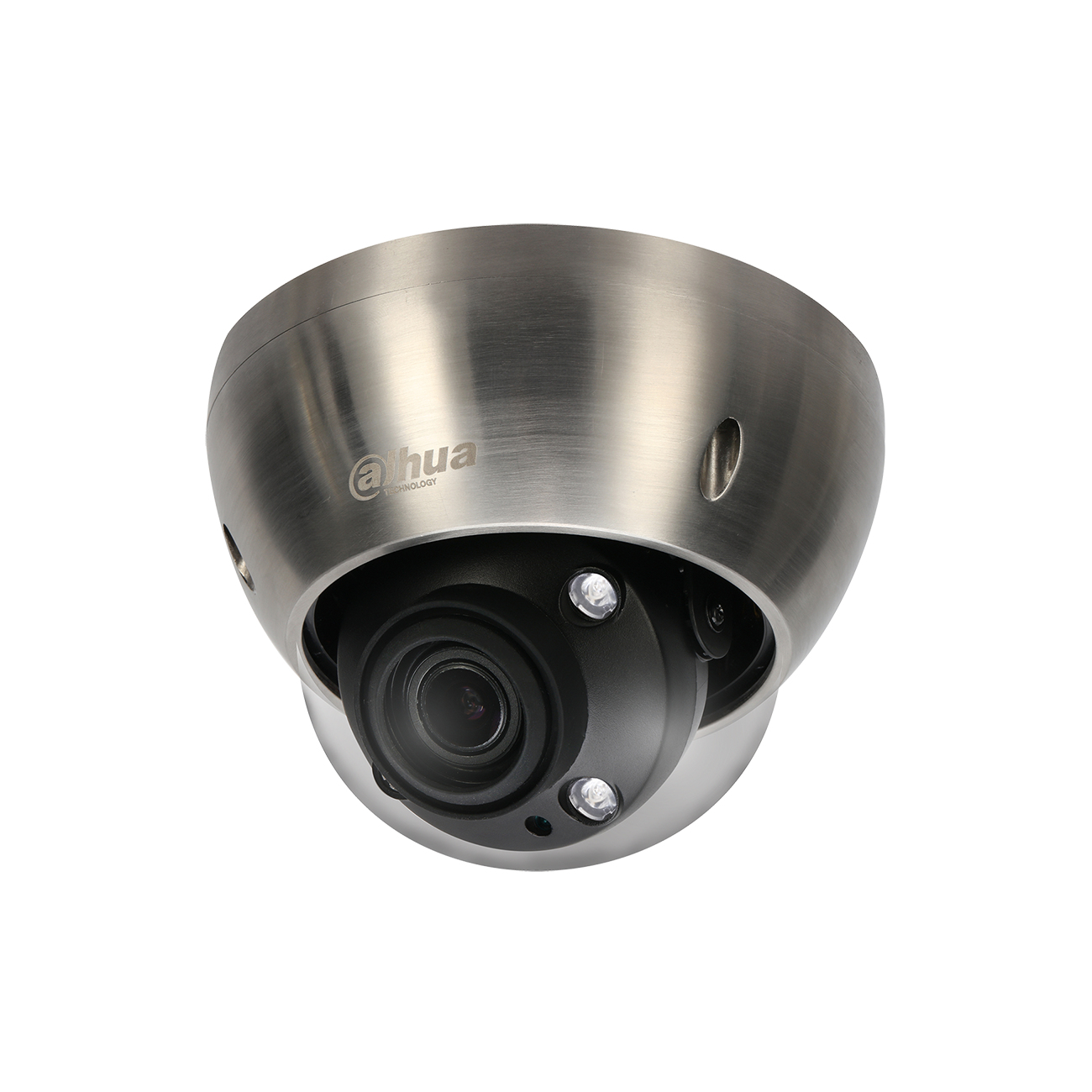

Dahua Technology Ultra IPC-HDBW8232E-Z-SL security camera Dome IP security camera Outdoor
Dahua Technology

Ultra IPC-HDBW8232E-Z-SL security camera Dome IP security camera Outdoor

1920 x 1080 pixels Ceiling

Model IPC-HDBW8232E-Z-SL

118 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight2.25 kg
  • ColourStainless steel
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
2.25 kg
Colour
Stainless steel
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
IPC-HDBW8232E-Z-SL
Part number
IPC-HDBW8232E-Z-SL
Also known as
Dahua Technology Ultra IPC-HDBW8232E-Z-SL security camera Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling

Specifications

118 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
People counting functionYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Remote viewingYes
Plug and PlayYes
CertificationCE (EN 60950:2000), UL:UL60950-1, FCC: FCC Part 15 Subpart B

Design

Form factorDome
Mounting typeCeiling
Product colourStainless steel
Housing materialStainless steel
International Protection (IP) codeIP67
IK codeIK10
WeatherproofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal92°
Lens viewing angle, vertical53°
Tilt angle range0 - 65°
Pan range0 - 355°
Auto flipYes
White balanceAuto, Lamp, Manual, Natural, Outdoor

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Focal length range4.1 - 16.4 mm
FocusMotorized
Maximum aperture number1.53
Closest focusing distance1 m
Detect distance (tele)137 m
Detect distance (wide)57 m
Identify distance (tele)14 m
Identify distance (wide)6 m
Observe distance (tele)55 m
Observe distance (wide)23 m
Recognize distance (tele)27 m
Recognize distance (wide)11 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs3
Infra-red wavelength850 nm

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions342 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Video intelligence analyticYes
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate24 - 10240Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Portrait modeYes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Terminal block portYes
DC-in jackYes

Security

Anti-flickerYes
HeartbeatYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object, Tripwire
MirrorYes
Motion sensorYes

Management features

Web-based managementYes
Web browserYes
Behavior analysisIntrusion detection, Object removal detection, Unattended baggage detection
Firmware upgradeableYes
Remotely operatedYes

Power

Power source typeAC, DC, PoE
AC input voltage24 V
Power consumption (typical)18 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height118.1 mm
Diameter16.2 cm
Weight2.25 kg

Packaging data

Package weight3 kg

Packaging content

Number of cameras1
