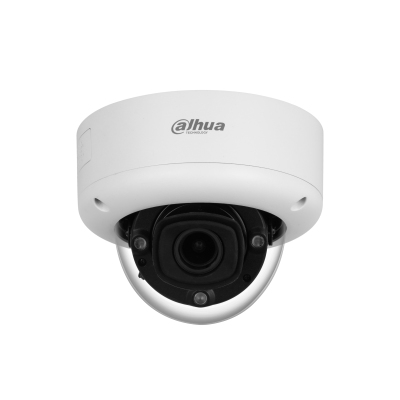

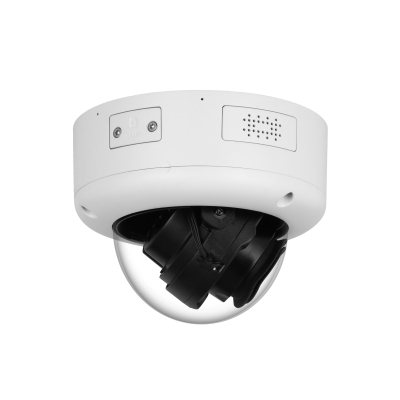

Dahua Technology WizMind IPC-HDBW7842E1-Z-X Dome IP security camera Outdoor
Dahua Technology

WizMind IPC-HDBW7842E1-Z-X Dome IP security camera Outdoor

3840 x 2160 pixels Ceiling/Wall/Pole

Model IPC-HDBW7842E1-Z-XPart no. DH-IPC-HDBW7842E1-Z-X

103 specifications
  • Memory4096 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.16 kg
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
4096 MB
Connectivity
Wired
Type
IP security camera
Weight
1.16 kg
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW7842E1-Z-X
Part number
DH-IPC-HDBW7842E1-Z-X
Also known as
Dahua Technology WizMind IPC-HDBW7842E1-Z-X Dome IP security camera Outdoor 3840 x 2160 pixels Ceiling/Wall/Pole

Specifications

103 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range140 dB
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67
IK codeIK10
Fog proofYes

Camera

Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal105 - 48°
Lens viewing angle, vertical55 - 27°
Lens viewing angle, diagonal124 - 55°
Tilt angle range0 - 80°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 –1/100000
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Focal length range2.7 - 12 mm
Minimum aperture number1.2
Closest focusing distance1.8 m
Detect distance (tele)186.6 m
Detect distance (wide)87.6 m
Identify distance (tele)18.7 m
Identify distance (wide)8.8 m
Observe distance (tele)74.6 m
Observe distance (wide)35 m
Recognize distance (tele)37.3 m
Recognize distance (wide)17.5 m

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3072 x 2048, 3840 x 2160
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–16384 kbps; H.265: 12 kbps–12800 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Built-in speaker(s)Yes
Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.723, G.726, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Profile M; Auto Register
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size1 TB
ROM capacity8192 MB
RAM capacity4096 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
BNC output ports1
DC-in jackYes

Security

Alarm input channels3
Alarm output channels2
Intelligent Video Surveillance (IVS) system featuresFace detection, Heat map, Human detection, Intrusion, Moving object, People counting, Pet detection, Tripwire, Vehicle detection
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmartPSS Lite; DSS; DMSS

Power

Power source typeAC, DC, PoE
Power consumption (typical)6.6 W
Power consumption (max)25.2 W
Power consumption (Power over Ethernet (PoE))9.8 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 65 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)10 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height118 mm
Diameter15.9 cm
Weight1.16 kg

Packaging data

Package weight1.36 kg

Packaging content

Number of cameras1
