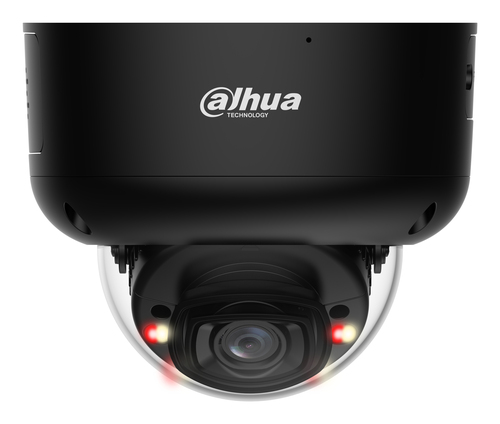

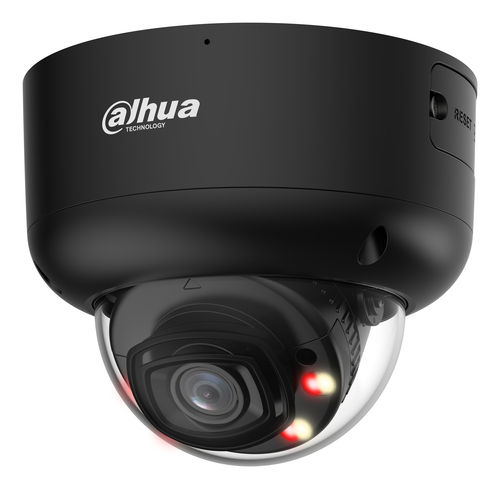

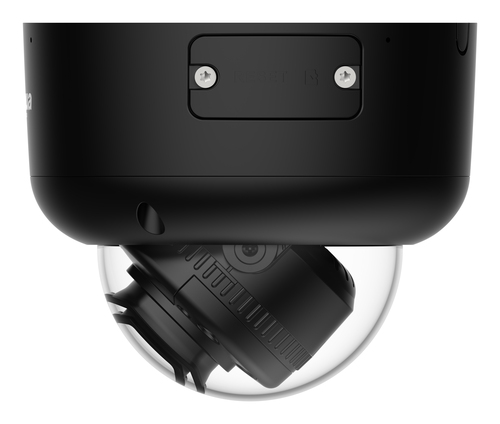

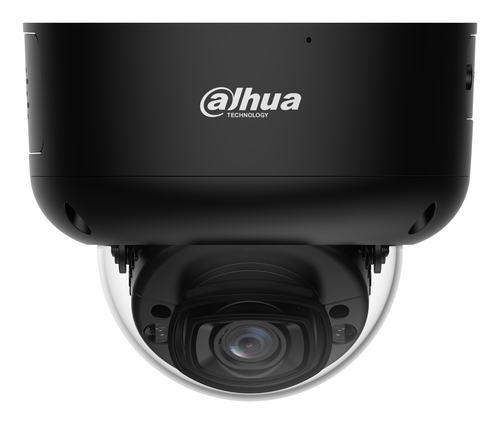

Dahua Technology WizMind IPC-HDBW5859R1-ASE-PV-0280B-PRO Dome IP security camera Outdoor
Dahua Technology

WizMind IPC-HDBW5859R1-ASE-PV-0280B-PRO Dome IP security camera Outdoor

3840 x 2160 pixels Ceiling/Wall/Pole

Model IPC-HDBW5859R1-ASE-PV-0280B-PROPart no. IPC-HDBW5859R1-ASE-PV-0280B-PRO-BLACK

113 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight730 g
  • ColourBlack
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
730 g
Colour
Black
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
IPC-HDBW5859R1-ASE-PV-0280B-PRO
Part number
IPC-HDBW5859R1-ASE-PV-0280B-PRO-BLACK
Also known as
Dahua Technology WizMind IPC-HDBW5859R1-ASE-PV-0280B-PRO Dome IP security camera Outdoor 3840 x 2160 pixels Ceiling/Wall/Pole

Specifications

113 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
People counting functionYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range130 dB
Smart search functionYes

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourBlack
Housing materialMetal
Protection featuresDustproof, Waterproof, Vandal proof
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0002 lx
RotatingYes
Angle of rotation355°
Lens viewing angle, horizontal109°
Lens viewing angle, vertical59°
Lens viewing angle, diagonal131°
Tilt angle range0 - 80°
Pan range0 - 355°
White balanceAuto, Natural, Street lamp, Outdoor, Manual, Regional custom
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Detect distance82 m
Observe distance32.8 m
Recognize distance16.4 m
Identify distance8.2 m
Maximum aperture number1
Closest focusing distance3.2 m
Fixed focal length2.8 mm
Lens distortion correction (LDC)Yes

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video compression formatsH.265, H.264, H.264H, H.264B, M-JPEG
Video recordingYes
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 - 16384 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes
Scene self-adaptation (SSA)Yes
Smart IRYes

Audio

Built-in speaker(s)Yes
Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711u, G.711 A-law, PCM, G.723, G.726
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Number of microphones2

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3at
Supported network protocolsIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size1 TB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
DC-in jackYes

Security

Alarm input channels1
Alarm output channels1
HTTPS encryptionYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresTripwire, Intrusion, People counting, Face detection, Heat map
MirrorYes
Motion detection systemSMD 4.0
Network access storage (NAS)Yes
Video motion detectionYes

Management features

Web-based managementYes
Reset buttonYes
Smartphone/tablet remote supportYes

Power

Power source typeDC, PoE
Power consumption (typical)4.1 W
Power consumption (max)21.7 W
Power consumption (Power over Ethernet (PoE))4.8 W
Power consumption (Power over Ethernet (PoE)) (max)23.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height105 mm
Diameter12.6 cm
Weight730 g

Sustainability

Compliance certificatesCE

Packaging data

Package weight940 g

Packaging content

Number of cameras1
ManualYes
