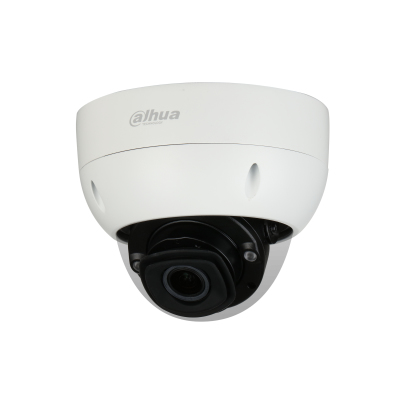

Dahua Technology WizMind IPC-HDBW5842HP-ZHE-2712F-DC security camera Dome IP security camera Outdoor
Dahua Technology

WizMind IPC-HDBW5842HP-ZHE-2712F-DC security camera Dome IP security camera Outdoor

3840 x 2160 pixels Ceiling/wall

Model IPC-HDBW5842HP-ZHE-2712F-DC

95 specifications
  • Memory2048 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.5 kg
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
2048 MB
Connectivity
Wired
Type
IP security camera
Weight
1.5 kg
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW5842HP-ZHE-2712F-DC
Part number
IPC-HDBW5842HP-ZHE-2712F-DC
Also known as
Dahua Technology WizMind IPC-HDBW5842HP-ZHE-2712F-DC security camera Dome IP security camera Outdoor 3840 x 2160 pixels Ceiling/wall

Specifications

95 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal114°
Lens viewing angle, vertical59°
Lens viewing angle, diagonal141°
Tilt angle range0 - 80°
Pan range0 - 355°
White balanceAuto, Custom modes, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Focal length range2.7 - 12 mm
Maximum aperture number1.2
Closest focusing distance1 m
Detect distance (tele)186.7 m
Detect distance (wide)87.2 m
Identify distance (tele)18.6 m
Identify distance (wide)8.7 m
Observe distance (tele)74.7 m
Observe distance (wide)34.9 m
Recognize distance (tele)37.3 m
Recognize distance (wide)17.4 m

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Frame rate30 fps
Analog signal format systemPAL
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate32 Kbps–16384 Kbps, 12 Kbps–16384 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Voice codecsG.711Mu, G.711a, G.723, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3at
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory2048 MB
ROM capacity4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1

Security

Intelligent Video Surveillance (IVS) system featuresFace detection, Intrusion, Tripwire
MirrorYes
Video motion detectionYes

Power

Power source typeDC, PoE
Power consumption (max)16.7 W
Power consumption (Power over Ethernet (PoE))15.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Height129.1 mm
Diameter15.8 cm
Weight1.5 kg

Packaging data

Package weight1.6 kg

Packaging content

Number of cameras1
