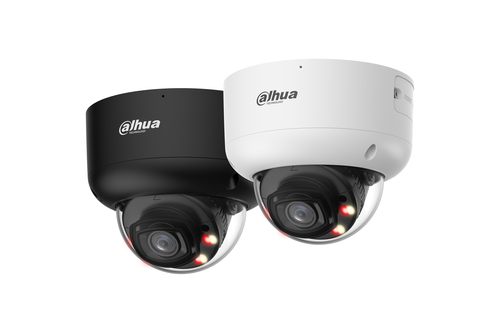

Dahua Technology WizMind IPC-HDBW5659R1-ASE-PV-PRO Spherical IP security camera Indoor & outdoor
Dahua Technology

WizMind IPC-HDBW5659R1-ASE-PV-PRO Spherical IP security camera Indoor & outdoor

3072 x 2048 pixels Ceiling

Model IPC-HDBW5659R1-ASE-PV-PROPart no. IPC-HDBW5659R1-ASE-PV-0280B-PRO-BLACKEAN 6923172597557

94 specifications
  • Memory2000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight730 g
  • ColourBlack
  • Form factorSpherical
See all specifications

Overview

Memory
2000 MB
Connectivity
Wired
Type
IP security camera
Weight
730 g
Colour
Black
Form factor
Spherical
Brand
Dahua Technology
Model
IPC-HDBW5659R1-ASE-PV-PRO
Part number
IPC-HDBW5659R1-ASE-PV-0280B-PRO-BLACK
EAN / UPC
6923172597557
Also known as
Dahua Technology WizMind IPC-HDBW5659R1-ASE-PV-PRO Spherical IP security camera Indoor & outdoor 3072 x 2048 pixels Ceiling

Specifications

94 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Auto-trackingYes
Auto pan modeYes
People counting functionYes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Built-in lightYes
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Design

Form factorSpherical
Mounting typeCeiling
Product colourBlack
Housing materialMetal
Protection featuresCorrosion resistant, Waterproof
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal93°
Lens viewing angle, vertical50°
Lens viewing angle, diagonal111°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Detect distance85.6 m
Observe distance34.3 m
Recognize distance17.1 m
Fixed focusYes
Identify distance86 m
Maximum aperture number1
Closest focusing distance3.2 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance40 m
LED typeIR/White
Number of illumination LEDs4

Video

Maximum resolution3072 x 2048 pixels
Total megapixels4 MP
Video compression formatsM-JPEG, H.265, H.264, H.264H, H.264B
Supported graphics resolutions1920 x 1080 (HD 1080), 2688 x 1520, 2560 x 1440, 2304 x 1296, 2048 x 1536 (QXGA), 1280 x 960, 1280 x 720 (HD 720), 704 x 576, 704 x 480, 640 x 480 (VGA), 352 x 288, 352 x 240, 3072 x 2048
Supported video modes1080p, 720p
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Image quality adjustmentMirror, Gain
Smart IRYes

Audio

Built-in speaker(s)Yes
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Number of microphones1
Audio detectionYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Storage

Built-in HDDYes
Built-in SSDYes
ROM capacity4000 MB
RAM capacity2000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Detection distance124 m
MirrorYes
Motion sensorYes

Power

Power source typeDC
Power consumption (max)21.7 W
Power consumption (Power over Ethernet (PoE))23.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width126 mm
Depth126 mm
Height105 mm
Weight730 g

Sustainability

Compliance certificatesLow Voltage Directive (LVD), Electromagnetic Compatibility (EMC), CE

Packaging data

Package weight940 g

Packaging content

Number of cameras2
Memory card includedMicroSD

Technical details

Lens mount interfaceM16
