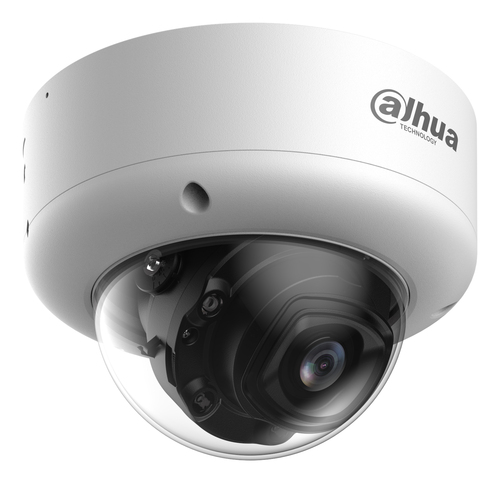

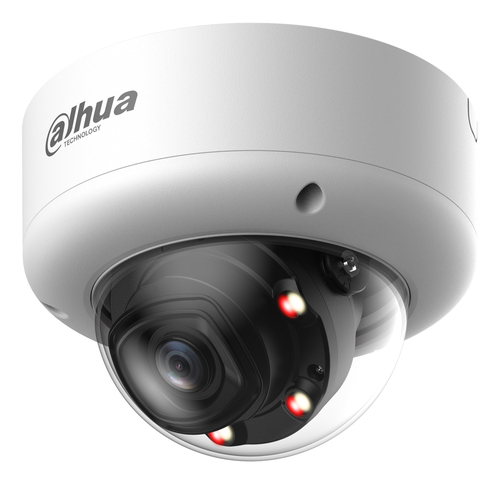

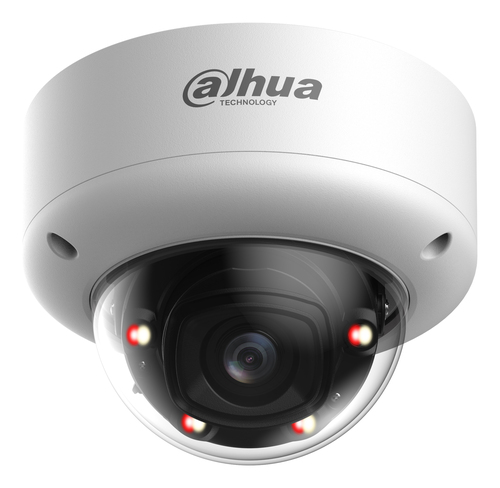

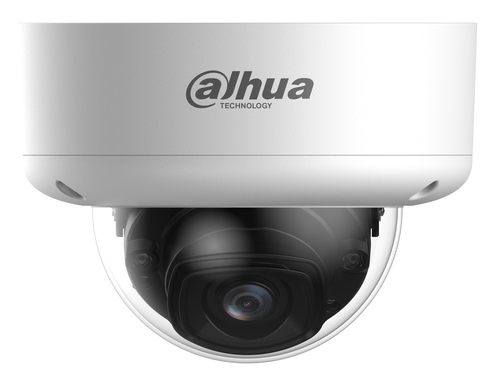

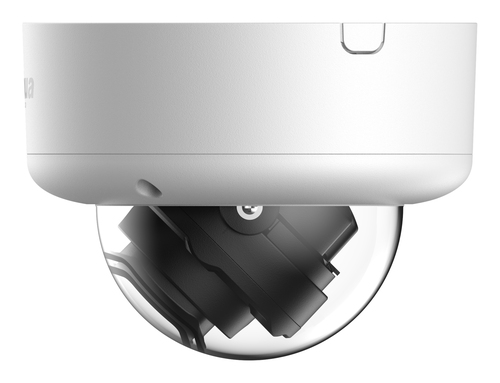

Dahua Technology WizMind IPC-HDBW5459E1-ZE-IL Dome IP security camera Indoor & outdoor
Dahua Technology

WizMind IPC-HDBW5459E1-ZE-IL Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling

Model IPC-HDBW5459E1-ZE-ILPart no. IPC-HDBW5459E1-ZE-IL-2712

115 specifications
  • Memory2000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.16 kg
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
2000 MB
Connectivity
Wired
Type
IP security camera
Weight
1.16 kg
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW5459E1-ZE-IL
Part number
IPC-HDBW5459E1-ZE-IL-2712
Also known as
Dahua Technology WizMind IPC-HDBW5459E1-ZE-IL Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling

Specifications

115 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
People counting functionYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range140 dB
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal115-47°
Lens viewing angle, vertical62-27°
Lens viewing angle, diagonal137-54°
Tilt angle range0 - 80°
Pan range0 - 355°
White balanceAuto, Manual, Outdoor, Natural, Street lamp, Regional custom
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Focal length range2.7 - 12 mm
Maximum aperture number1.8
Closest focusing distance0.13 m
Detect distance (tele)130.8 m
Detect distance (wide)57.5 m
Identify distance (tele)13.1 m
Identify distance (wide)5.8 m
Observe distance (tele)52.3 m
Observe distance (wide)23 m
Recognize distance (tele)26.2 m
Recognize distance (wide)11.5 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.265
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes720p, 1080p
Frame rate60 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 Kbps–8192 Kbps, H.265: 19 Kbps–8192 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC, G.711, G.723, G.726
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size1 TB
Internal memory2000 MB
ROM capacity4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels2
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Missing object, Face detection, Heat map, People counting
MirrorYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Management softwareDSS; DMSS; DoLynk Care

Power

Power source typeDC, PoE
Power consumption (typical)3.7 W
Power consumption (max)16.1 W
Power consumption (Power over Ethernet (PoE))5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height118 mm
Diameter15.9 cm
Weight1.16 kg

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC)

Packaging data

Package weight1.36 kg

Packaging content

Number of cameras1

Technical details

IrisYes
Lens typeVarifocal
Number of video streams4
