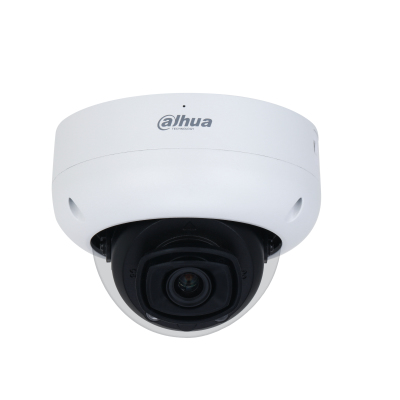

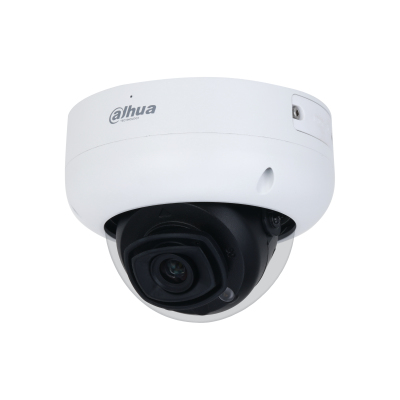

Dahua Technology IPC -HDBW5449R-ASE-LED-0280B security camera Dome IP security camera Indoor & outdoor
Dahua Technology

IPC -HDBW5449R-ASE-LED-0280B security camera Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling

Model IPC-HDBW5449R-ASE-LED-0280B

94 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight460 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
460 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW5449R-ASE-LED-0280B
Part number
IPC-HDBW5449R-ASE-LED-0280B
Also known as
Dahua Technology IPC -HDBW5449R-ASE-LED-0280B security camera Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling

Specifications

94 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Built-in lightYes
Dynamic range140 dB
CertificationCE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.001 lx
Angle of rotation355°
Lens viewing angle, horizontal107°
Lens viewing angle, vertical60°
Lens viewing angle, diagonal135°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Panoramic camera

Closest focusing distance (panoramic camera)1.6 m
Identify distance (wide) (panoramic camera)5.8 m
Number of Privacy masking areas (panoramic camera)4
Observe distance (wide) (panoramic camera)23.3 m

Lens system

Number of lenses1
Detect distance70 m
Observe distance28 m
Recognize distance14 m
Identify distance7 m
Maximum aperture number1
Fixed focal length3.6 mm

Night vision

Night visionYes
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.265
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes720p, 1080p
Frame rate60 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC, G.711, G.723, G.726
Built-in microphoneYes

Network

Ethernet LANYes
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1000 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Missing object
MirrorYes

Management features

Web browserYes
Management softwareSmart PSS;DSS;DMSS

Power

Power source typeDC, PoE
Power consumption (typical)4.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width122 mm
Depth122 mm
Height88.9 mm
Diameter12.2 cm
Weight460 g

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC)

Packaging data

Package weight620 g
