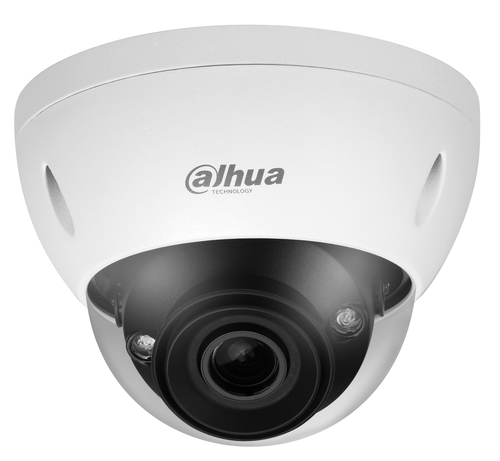

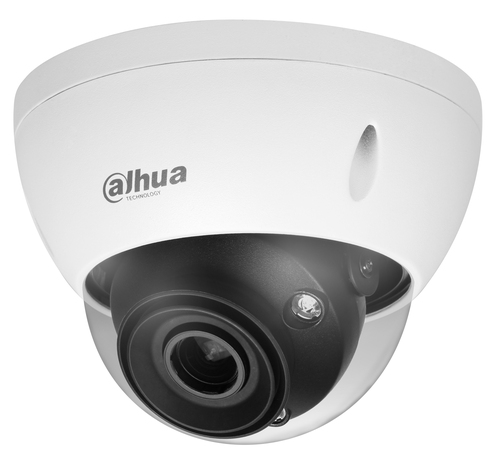

Dahua Technology WizMind IPC-HDBW5441E-ZE-HDMI Dome IP security camera Indoor & outdoor
Dahua Technology

WizMind IPC-HDBW5441E-ZE-HDMI Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling

Model IPC-HDBW5441E-ZE-HDMIPart no. DH-IPC-HDBW5441EP-ZE-HDMI-27135EAN 6923172514226

94 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight920 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
920 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW5441E-ZE-HDMI
Part numbers
DH-IPC-HDBW5441EP-ZE-HDMI-27135, DH-IPC-HDBW5441E-ZE-HDMI
EAN / UPC
6923172514226
Also known as
Dahua Technology WizMind IPC-HDBW5441E-ZE-HDMI Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling

Specifications

94 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0002 lx
Angle of rotation355°
Lens viewing angle, horizontal104 - 29°
Lens viewing angle, vertical54 - 16°
Lens viewing angle, diagonal125 - 34°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
Identify distance6.4 m
Maximum aperture number1.6
Closest focusing distance0.1 m
Detect distance (tele)210 m
Detect distance (wide)64 m
Identify distance (tele)21 m
Identify distance (wide)6.4 m
Observe distance (tele)84 m
Observe distance (wide)25.6 m
Recognize distance (tele)42 m
Recognize distance (wide)12.8 m

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440, 2688 x 1520
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.723, G.726, PCM

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Number of users20 user(s)

Storage

ROM capacity256 MB
RAM capacity1000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
HDMI ports quantity1

Security

Alarm input channels2
Alarm output channels1
MirrorYes
Motion sensorYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)3.6 W
Power consumption (max)8.3 W
Power consumption (Power over Ethernet (PoE))4.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height118.1 mm
Diameter15.9 cm
Weight920 g

Sustainability

Compliance certificatesCE

Packaging data

Package weight1.22 kg

Packaging content

Number of cameras1
ManualYes
