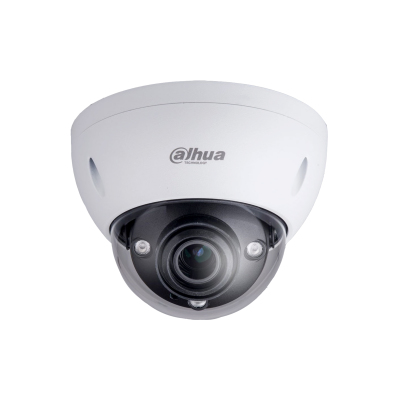

Dahua Technology Eco-savvy 3.0 IPC-HDBW5431E-Z5E security camera Dome IP security camera Outdoor
Dahua Technology

Eco-savvy 3.0 IPC-HDBW5431E-Z5E security camera Dome IP security camera Outdoor

2688 x 1520 pixels Ceiling/wall

Model IPC-HDBW5431E-Z5E

90 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight950 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
950 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW5431E-Z5E
Part number
IPC-HDBW5431E-Z5E
Also known as
Dahua Technology Eco-savvy 3.0 IPC-HDBW5431E-Z5E security camera Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

90 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10+

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal33°
Lens viewing angle, vertical20°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom5x
Focal length range7 - 35 mm
FocusMotorized
Maximum aperture number1.4
Closest focusing distance0.4 m
Detect distance (tele)620 m
Detect distance (wide)190 m
Identify distance (tele)62 m
Identify distance (wide)19 m
Observe distance (tele)248 m
Observe distance (wide)76 m
Recognize distance (tele)124 m
Recognize distance (wide)38 m

Night vision

Night visionYes
Night vision distance100 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Frame rate30 fps
Video streamingYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Voice codecsAAC, G.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3at
Supported network protocolsHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory512 MB
ROM capacity32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresFace detection, Intrusion, Tripwire
Video motion detectionYes

Power

Power source typeAC, DC, PoE
Power consumption (max)15 W

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height117.9 mm
Diameter15.9 cm
Weight950 g

Packaging data

Package weight1.2 kg

Packaging content

Number of cameras1
