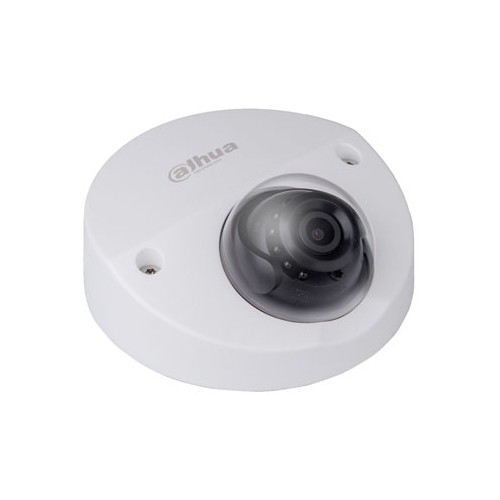

Dahua Technology Lite IPC-HDBW4421F-0280B security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Lite IPC-HDBW4421F-0280B security camera Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling

Model IPC-HDBW4421F-0280B

61 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight350 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.01 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
350 g
Colour
White
Form factor
Dome
Minimum illumination
0.01 lx
Brand
Dahua Technology
Model
IPC-HDBW4421F-0280B
Part number
IPC-HDBW4421F-0280B
Also known as
Dahua Technology Lite IPC-HDBW4421F-0280B security camera Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling

Specifications

61 specifications in 16 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Protection featuresDust resistant, Water resistant
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.01 lx
Field of view (FOV) angle84°
White balanceAuto, Custom modes, Outdoor, Sunny
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Number of lenses1
FocusManual
Maximum aperture number1.8
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance20 m
LED typeIR

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264
Video compression formatsH.264, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Frame rate20 fps
Video streamingYes
Noise reduction technology3D noise reduction, Ultra 2D noise reduction
3D NR (Noise Reduction)Yes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate32K ~ 10Mbps
Full HDYes
Privacy maskingYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Cabling technology10/100Base-T(X)
Number of users20 user(s)

Ports & interfaces

Ethernet LAN (RJ-45) ports1
InterfaceRJ-45

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Scene change, Tripwire

Power

Power source typeDC, PoE
Power consumption (max)5 W

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, Windows Phone, iOS

Weight & dimensions

Height50.3 mm
Diameter10.6 cm
Weight350 g

Packaging content

Number of cameras1
