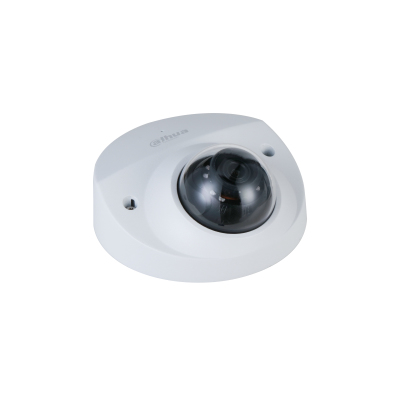

Dahua Technology Lite IPC-HDBW3241F-AS-M security camera Dome IP security camera Outdoor
Dahua Technology

Lite IPC-HDBW3241F-AS-M security camera Dome IP security camera Outdoor

1920 x 1080 pixels Ceiling/wall

Model IPC-HDBW3241F-AS-M

88 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight380 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
380 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW3241F-AS-M
Part number
IPC-HDBW3241F-AS-M
Also known as
Dahua Technology Lite IPC-HDBW3241F-AS-M security camera Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

88 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
CertificationCE-LVD: EN60950-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, B

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.002 lx
Angle of rotation360°
Lens viewing angle, horizontal106°
Lens viewing angle, vertical57°
Lens viewing angle, diagonal126°
Tilt angle range0 - 80°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Detect distance38.6 m
Observe distance15.4 m
Recognize distance7.7 m
Identify distance3.9 m
Maximum aperture number1.6
Closest focusing distance0.6 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs8

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 Kbps–8192 Kbps
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory256 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresPeople counting, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Behavior analysisIntrusion detection, Line crossing detection

Power

Power source typeDC, PoE
Power consumption (max)5.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height55 mm
Diameter10.9 cm
Weight380 g

Packaging data

Package weight520 g

Packaging content

Number of cameras1
