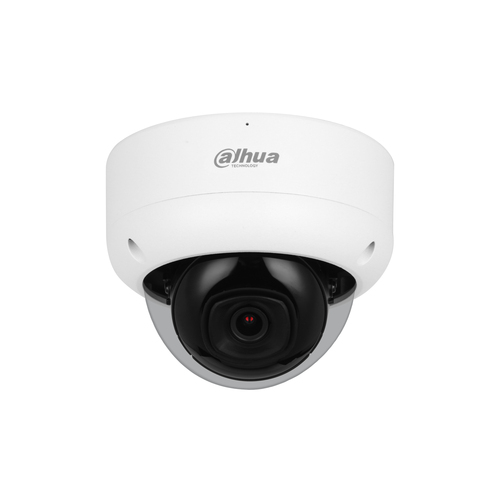

Dahua Technology IPC-HDBW3241E-S-S2 Dome IP security camera Indoor & outdoor
Dahua Technology

IPC-HDBW3241E-S-S2 Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model IPC-HDBW3241E-S-S2Part no. DH-IPC-HDBW3241E-S-S2-0280BEAN 6923172541635

102 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight516 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
516 g
Colour
White
Form factor
Dome
Minimum illumination
0 lx
Brand
Dahua Technology
Model
IPC-HDBW3241E-S-S2
Part number
DH-IPC-HDBW3241E-S-S2-0280B
EAN / UPC
6923172541635
Also known as
Dahua Technology IPC-HDBW3241E-S-S2 Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

102 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
Protection featuresWater resistant
International Protection (IP) codeIP67
IK codeIK10
Fog proofYes

Camera

Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal107°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal127°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Detect distance43.9 m
Observe distance17.5 m
Recognize distance8.8 m
Fixed focusYes
Identify distance4.4 m
Maximum aperture number1.4
Closest focusing distance0.7 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rate3 Kbps - 8 Mbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.723, G.726, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)
User access levelAdministrator, Operator, User

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Flash memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
HTTPS encryptionYes
MirrorYes
Network access storage (NAS)Yes
Privacy protectionYes
Video motion detectionYes

Management features

Web-based managementYes
Management softwareSmartPSS Lite; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (max)6.6 W
Power consumption (Power over Ethernet (PoE))7.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height89.1 mm
Diameter11.2 cm
Weight516 g

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC), UL, cUL
Sustainability complianceYes

Packaging data

Package weight670 g

Packaging content

Number of cameras1

Technical details

Audio inputRCA
IrisYes

Other features

Audio outputRCA
