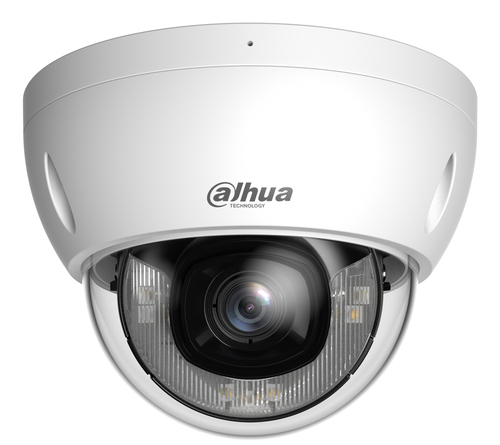

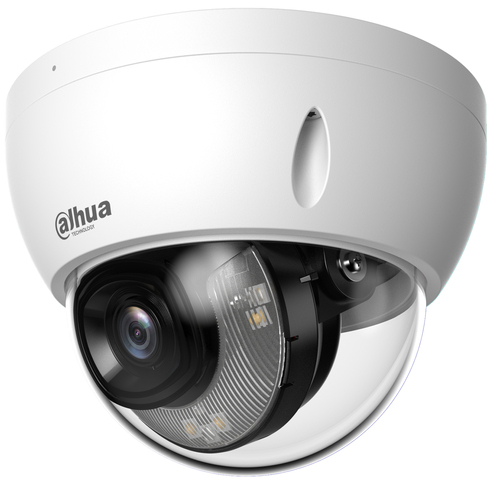

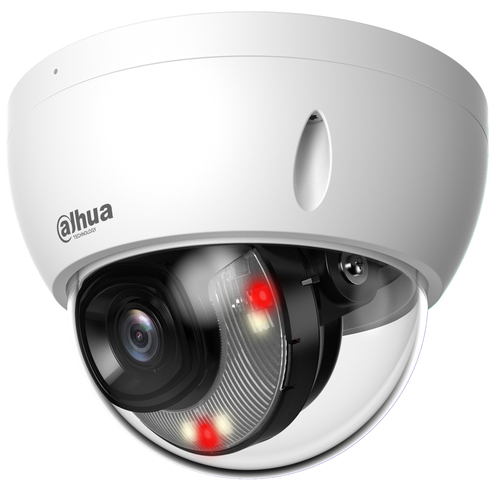

Dahua Technology WizSense IPC-HDBW2649E-S-IL-0280B-S2 security camera Dome IP security camera Outdoor
Dahua Technology

WizSense IPC-HDBW2649E-S-IL-0280B-S2 security camera Dome IP security camera Outdoor

3288 x 1850 pixels Ceiling/Wall/Pole

Model IPC-HDBW2649E-S-IL-0280B-S2

92 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight340 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
340 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
IPC-HDBW2649E-S-IL-0280B-S2
Part numbers
IPC-HDBW2649E-S-IL-0280B-S2, IPC-HDBW2649E-S-IL-0280B-S2-BLACK
Also known as
Dahua Technology WizSense IPC-HDBW2649E-S-IL-0280B-S2 security camera Dome IP security camera Outdoor 3288 x 1850 pixels Ceiling/Wall/Pole

Specifications

92 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal
Protection featuresDustproof
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0007 lx
Angle of rotation355°
Lens viewing angle, horizontal112°
Lens viewing angle, vertical61°
Lens viewing angle, diagonal132°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Natural, Street lamp, Manual, Outdoor, Regional custom
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Detect distance61.2 m
Observe distance24.5 m
Recognize distance12.2 m
Identify distance6.1 m
Maximum aperture number1.6
Closest focusing distance1 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs7

Video

Maximum resolution3288 x 1850 pixels
Total megapixels6 MP
Video compression formatsH.265, H.264, H.264H, H.264B, M-JPEG
Video recordingYes
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedG.711 μ-law, G.711 A-law, G.726, PCM
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, ICMP, IGMP, NFS, P2P
Number of users6 user(s)
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresTripwire, Intrusion
MirrorYes
Security algorithmsSSL/TLS, 256-bit AES
Video motion detectionYes

Management features

Smartphone/tablet remote supportYes

Power

Power source typePoE, DC
Power consumption (typical)1.72 W
Power consumption (max)4.67 W
Power consumption (Power over Ethernet (PoE))2.81 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height81 mm
Diameter11 cm
Weight340 g

Sustainability

Compliance certificatesCE

Packaging data

Package weight490 g

Packaging content

Number of cameras1
ManualYes
