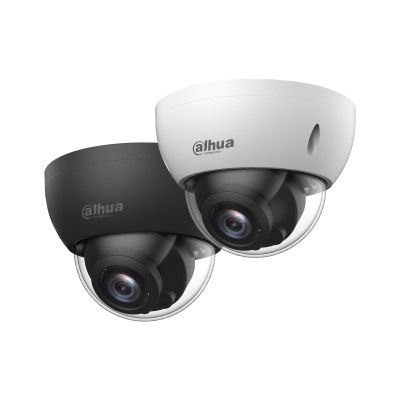

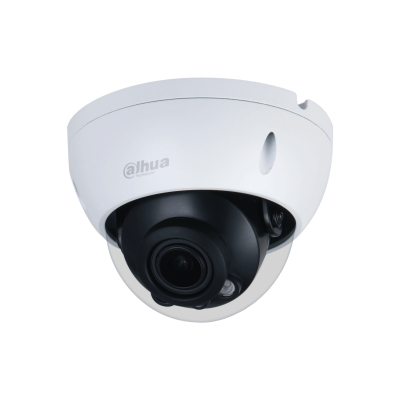

Dahua Technology Lite IPC-HDBW2531R-ZS-S2 Dome IP security camera Indoor & outdoor
Dahua Technology

Lite IPC-HDBW2531R-ZS-S2 Dome IP security camera Indoor & outdoor

2592 x 1944 pixels Ceiling

Model IPC-HDBW2531R-ZS-S2Part no. IPC-HDBW2531R-ZS-27135-S2EAN 6939554977947

95 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight470 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
470 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW2531R-ZS-S2
Part number
IPC-HDBW2531R-ZS-27135-S2
EAN / UPC
6939554977947
Also known as
Dahua Technology Lite IPC-HDBW2531R-ZS-S2 Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling

Specifications

95 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Angle of rotation355°
Lens viewing angle, horizontal100 - 26°
Lens viewing angle, vertical72 - 20°
Lens viewing angle, diagonal133 - 33°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 s–1/100000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Effective sensor resolution2 pixels
Progressive scanYes
Number of effective pixels (H x V)2592 x 1944 pixels

Lens system

Number of lenses2
Zoom capabilityYes
Digital zoom16x
Detect distance220 m
Observe distance88 m
Recognize distance44 m
Focal length range2.7 - 13.5 mm
FocusMotorized
Identify distance22 m
Maximum aperture number1.6
Closest focusing distance0.3 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Video compression formatsH.264, H.264B, H.265, MPEG
Supported graphics resolutions704 x 480, 704 x 576, 2592 x 1944, 2688 x 1520
Supported video modes720p, 1080p
Video recordingYes
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory256 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
Video motion detectionYes

Management features

Web-based managementYes

Power

Power source typeDC, PoE
Power consumption (max)9.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height88.9 mm
Diameter12.2 cm
Weight470 g

Packaging data

Package weight630 g

Packaging content

Number of cameras1
