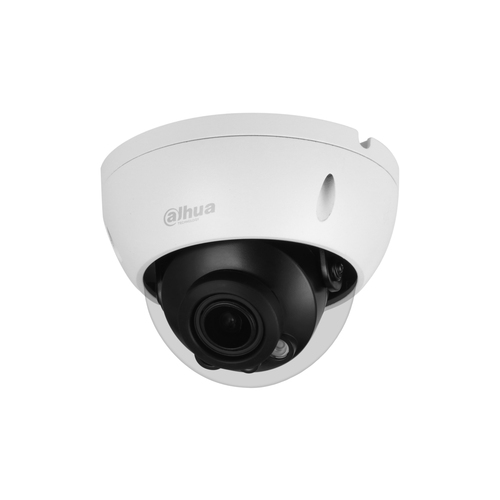

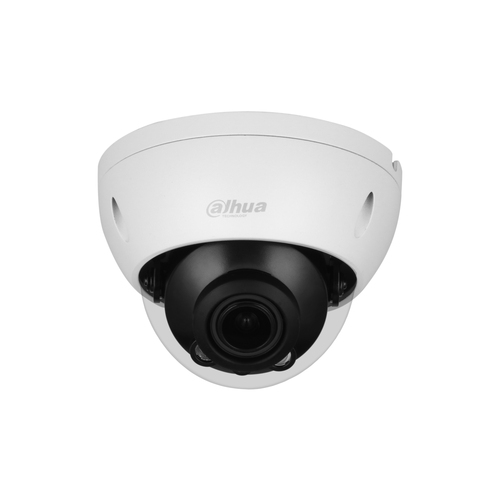

Lite IPC-HDBW2431R-ZS security camera IP security camera Indoor
2688 x 1520 pixels Ceiling/wall
Model IPC-HDBW2431R-ZSEAN 6939554974427
67 specifications
- ConnectivityWired
- TypeIP security camera
- Weight470 g
- ColourWhite
- Mounting typeCeiling/wall
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 470 g
- Colour
- White
- Mounting type
- Ceiling/wall
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-HDBW2431R-ZS
- Part number
- IPC-HDBW2431R-ZS
- EAN / UPC
- 6939554974427
- Also known as
- Dahua Technology Lite IPC-HDBW2431R-ZS security camera IP security camera Indoor 2688 x 1520 pixels Ceiling/wall
Specifications
67 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Maximum operating distance | 40 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
Design
| Specification | Value |
|---|---|
| Mounting type | Ceiling/wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.008 lx |
| Angle of rotation | 355° |
| Lens viewing angle, diagonal | 124° |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| White balance | Auto, Daylight, Natural |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 220 m |
| Observe distance | 88 m |
| Recognize distance | 44 m |
| Focal length range | 2.7 - 13.5 mm |
| Auto focus | Yes |
| Identify distance | 0.8 m |
| Fixed focal length | 13.5 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video formats supported | H.264, H.265 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 342 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Supported video modes | 720p, 1080p |
| Frame rate | 20 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Networking standards | IEEE 802.3af |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Maximum memory card size | 256 GB |
Security
| Specification | Value |
|---|---|
| Detection distance | 220 m |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
| Remotely operated | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 122 mm |
| Depth | 122 mm |
| Height | 88.9 mm |
| Diameter | 12.2 cm |
| Weight | 470 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 630 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
