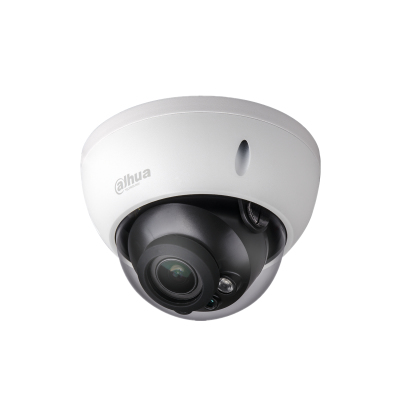

Lite IPC-HDBW2320RP-VFS security camera Dome IP security camera Indoor & outdoor
2304 x 1296 pixels Ceiling
Model IPC-HDBW2320RP-VFS
46 specifications
- ConnectivityWired
- TypeIP security camera
- Weight400 g
- ColourWhite
- Form factorDome
- Minimum illumination0.1 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 400 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.1 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-HDBW2320RP-VFS
- Part number
- IPC-HDBW2320RP-VFS
- Also known as
- Dahua Technology Lite IPC-HDBW2320RP-VFS security camera Dome IP security camera Indoor & outdoor 2304 x 1296 pixels Ceiling
Specifications
46 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Protection features | Vandal proof |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.1 lx |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 16x |
| Focal length range | 2.7 - 12 mm |
| Focus | Motorized |
| Maximum aperture number | 1.4 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 3 MP |
| Analog signal format system | PAL |
| Video streaming | Yes |
| Noise reduction | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 50 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Security
| Specification | Value |
|---|---|
| Motion sensor | Yes |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 0.1 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 88.9 mm |
| Diameter | 12.2 cm |
| Weight | 400 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 540 g |
