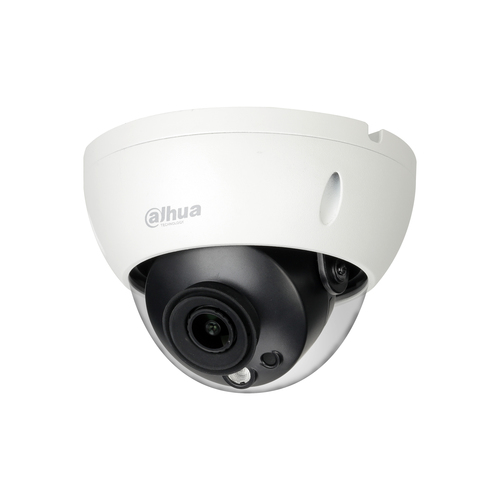

Lite IPC-HDBW1831R Dome IP security camera Indoor & outdoor
3840 x 2160 pixels Ceiling
Model IPC-HDBW1831RPart no. DH-IPC-HDBW1831R
95 specifications
- Memory512 MB
- ConnectivityWired
- TypeIP security camera
- Weight450 g
- ColourBlack, White
- Form factorDome
Overview
- Memory
- 512 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 450 g
- Colour
- Black, White
- Form factor
- Dome
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-HDBW1831R
- Part number
- DH-IPC-HDBW1831R
- Also known as
- Dahua Technology Lite IPC-HDBW1831R Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
Specifications
95 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE, UL, FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.003 lx |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 111° |
| Lens viewing angle, vertical | 59° |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| White balance | Auto, Lamp, Manual, Natural, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 ~ 1/100000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 3840 x 2160 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Digital zoom | 16x |
| Fixed focus | Yes |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 1.5 m |
| Detect distance (wide) | 84 m |
| Fixed focal length | 2.8 mm |
| Identify distance (wide) | 8 m |
| Observe distance (wide) | 34 m |
| Recognize distance (wide) | 17 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Video formats supported | H.264+, H.265+ |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1920, 3072 x 2048, 3840 x 2160 |
| Supported video modes | 240p, 480p, 576p, 720p, 960p, 1080p, 2160p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32Kbps ~ 8192Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 50 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Supported network protocols | HTTP, HTTPS, TCP, ARP, RTSP, RTP, RTCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPV4/V6, QoS, UPnP, NTP, Bonjour, IEEE 802.1X, Multicast, ICMP, IGMP, TLS, SSH, NFS, ONVIF Profile S&G, API |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Internal memory | 512 MB |
| ROM capacity | 128 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Active tampering alarm | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion, Tripwire |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
| Management software | Smart PSS, DSS, DMSS |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 8.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 88.9 mm |
| Diameter | 12.2 cm |
| Weight | 450 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 600 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
