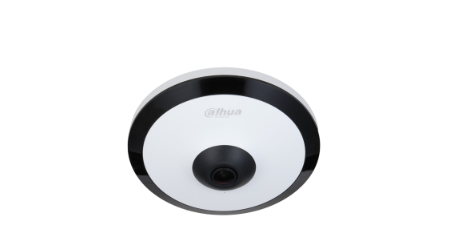

Dahua Technology WizMind IPC-EW5541P-AS IP security camera Indoor & outdoor
Dahua Technology

WizMind IPC-EW5541P-AS IP security camera Indoor & outdoor

2592 x 1944 pixels Ceiling/wall

Model IPC-EW5541P-ASPart no. DH-IPC-EW5541P-ASEAN 6939554993855

82 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight299 g
  • ColourBlack, White
  • Mounting typeCeiling/wall
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
299 g
Colour
Black, White
Mounting type
Ceiling/wall
Brand
Dahua Technology
Model
IPC-EW5541P-AS
Part number
DH-IPC-EW5541P-AS
EAN / UPC
6939554993855
Also known as
Dahua Technology WizMind IPC-EW5541P-AS IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall

Specifications

82 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Mounting typeCeiling/wall
Product colourBlack, White
Housing materialMetal, Plastic

Camera

Minimum illumination0.006 lx
Lens viewing angle, horizontal180°
Lens viewing angle, vertical180°
Lens viewing angle, diagonal180°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter speed1/3 -1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)2592 x 1944 pixels

Lens system

Number of lenses1
Detect distance28 m
Observe distance11.2 m
Recognize distance5.6 m
Focal length range1.4 mm
Identify distance2.8 m
Maximum aperture number2
Closest focusing distance2 m

Night vision

Night visionYes
Night vision distance10 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Video formats supportedH.264+, H.265+
Video compression formatsH.264, H.264B, H.264H, H.265
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2592 x 1944
Supported video modes720p
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.726, PCM
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Number of users20 user(s)

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresHeat map, Intrusion, Tripwire
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)3.6 W
Power consumption (max)7.8 W
Power consumption (Power over Ethernet (PoE))4.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height44.6 mm
Diameter12.6 cm
Weight299 g

Packaging data

Package weight411 g

Packaging content

Number of cameras1
