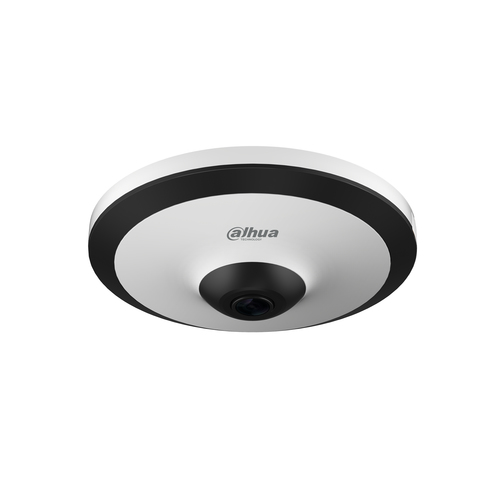

Dahua Technology Panoramic IPC-EW5531-AS Dome IP security camera Indoor
Dahua Technology

Panoramic IPC-EW5531-AS Dome IP security camera Indoor

2582 x 1944 pixels Ceiling

Model IPC-EW5531-ASPart no. DH-IPC-EW5531-AS

90 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight280 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
280 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-EW5531-AS
Part number
DH-IPC-EW5531-AS
Also known as
Dahua Technology Panoramic IPC-EW5531-AS Dome IP security camera Indoor 2582 x 1944 pixels Ceiling

Specifications

90 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationCE, UL, FCC

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
Housing materialMetal, Plastic

Camera

Minimum illumination0.006 lx
Lens viewing angle, horizontal180°
Lens viewing angle, vertical180°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 ~ 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)2592 x 1944 pixels

Lens system

Number of lenses1
Digital zoom16x
Maximum aperture number2
Detect distance (wide)28 m
Fixed focal length1.4 mm
Identify distance (wide)3 m
Observe distance (wide)11 m
Recognize distance (wide)6 m

Night vision

Night visionYes
Night vision distance10 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2582 x 1944 pixels
Total megapixels5 MP
Video formats supportedH.264+, H.265+
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Supported video modes480p, 576p, 720p, 960p, 1080p
Frame rate25 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 Kbps ~ 40960 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio codecsG.711a, G.711Mu, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsHTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP, RTMP, ONVIF, CGI, API
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory512 MB
ROM capacity32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (max)8.2 W
Power consumption (Power over Ethernet (PoE))10.1 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height44.7 mm
Diameter12.6 cm
Weight280 g

Packaging data

Package weight410 g
Package typeBox

Packaging content

Number of cameras1
