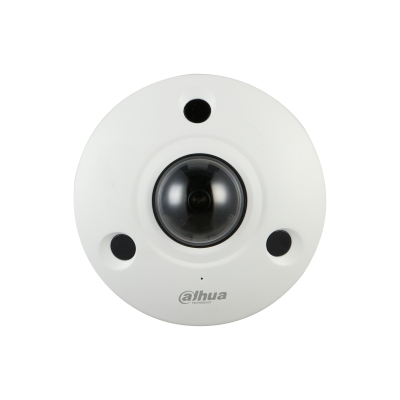

WizMind IPC-EBW81242 security camera Dome IP security camera Indoor & outdoor
4000 x 3000 pixels Ceiling/wall
Model IPC-EBW81242EAN 6939554963780
40 specifications
- Memory4096 MB
- ConnectivityWired
- TypeIP security camera
- Weight770 g
- ColourWhite
- Form factorDome
Overview
- Memory
- 4096 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 770 g
- Colour
- White
- Form factor
- Dome
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-EBW81242
- Part number
- IPC-EBW81242
- EAN / UPC
- 6939554963780
- Also known as
- Dahua Technology WizMind IPC-EBW81242 security camera Dome IP security camera Indoor & outdoor 4000 x 3000 pixels Ceiling/wall
Specifications
40 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.001 lx |
| Camera shutter speed | 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.7 mm (1 / 1.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Fixed focal length | 1.85 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 3 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 4000 x 3000 pixels |
| Total megapixels | 12 MP |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 49.7 dB |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Internal memory | 4096 MB |
| ROM capacity | 4096 MB |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 6.2 W |
| Power consumption (max) | 12.9 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 45 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 59.8 mm |
| Diameter | 15 cm |
| Weight | 770 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.16 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
