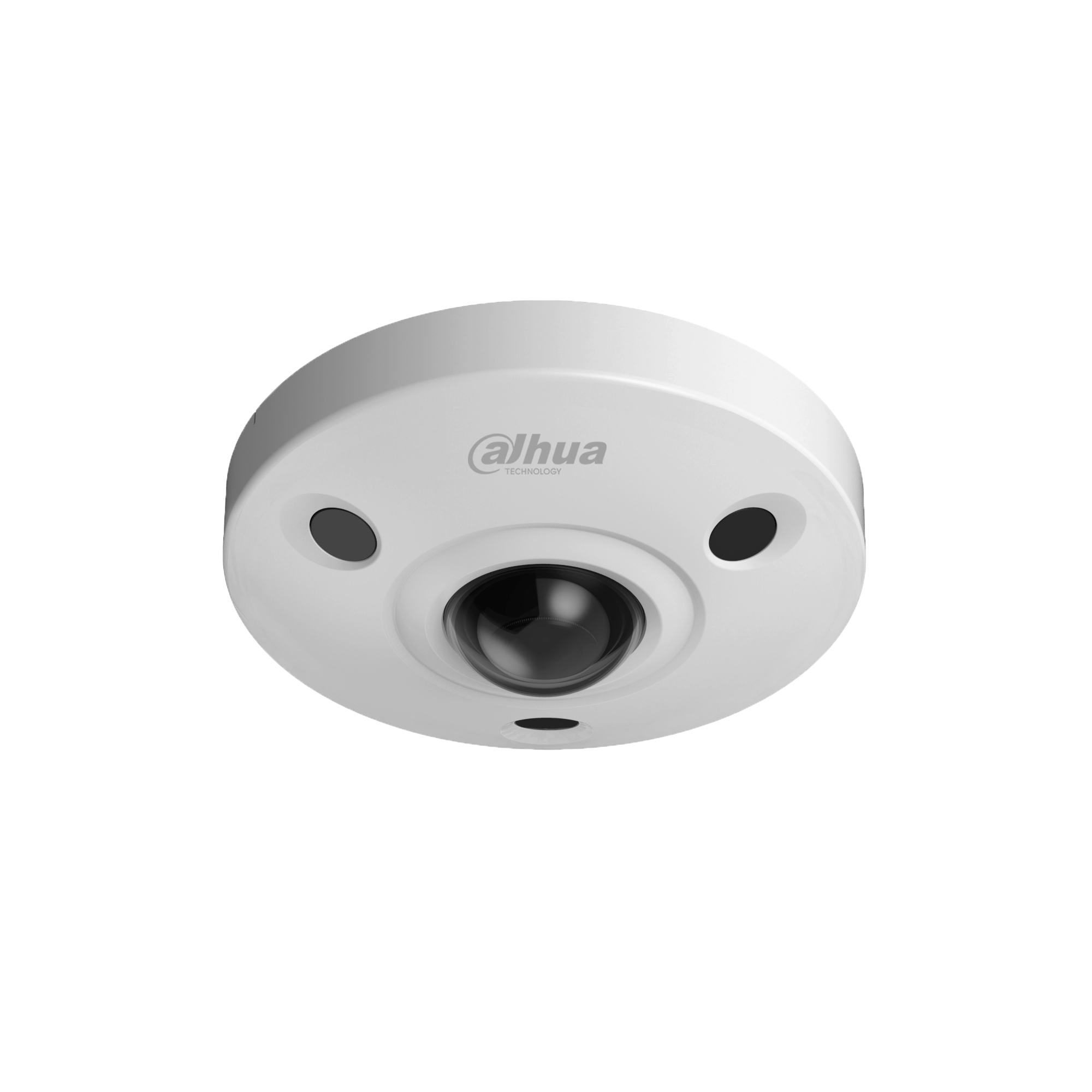

Dahua Technology Panoramic IPC-EBW81230 Dome IP security camera Outdoor

Dahua Technology Panoramic IPC-EBW81230 Dome IP security camera Outdoor

4000 x 3000 pixels Ceiling

Model IPC-EBW81230Part no. DH-IPC-EBW81230

104 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight580 g
  • ColourBlack, White
  • Form factorDome
  • Minimum illumination0.001 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
580 g
Colour
Black, White
Form factor
Dome
Minimum illumination
0.001 lx
Brand
Dahua Technology
Model
IPC-EBW81230
Part number
DH-IPC-EBW81230
Also known as
Dahua Technology Panoramic IPC-EBW81230 Dome IP security camera Outdoor 4000 x 3000 pixels Ceiling

Specifications

104 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Remote viewingYes
Plug and PlayYes
CertificationCE (EN 60950:2000), UL:UL60950-1, FCC: FCC Part 15 Subpart B

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10
WeatherproofYes
Fog proofYes

Camera

Minimum illumination0.001 lx
Lens viewing angle, horizontal180°
Lens viewing angle, vertical180°
White balanceAuto, Manual, Natural, Outdoor

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.7 mm (1 / 1.7")
Progressive scanYes
Number of effective pixels (H x V)4000 x 3000 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Digital zoom16x
Detect distance42 m
Observe distance17 m
Recognize distance8 m
Fixed focusYes
Maximum aperture number2.8
Fixed focal length1.98 mm
Identify distance (tele)4 m
Identify distance (wide)4 m

Night vision

Night visionYes
Night vision distance10 m
LED typeIR
Number of illumination LEDs3
Infra-red wavelength850 nm

Video

Maximum resolution4000 x 3000 pixels
Total megapixels12 MP
Video compression formatsH.264, H.265
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 960, 2048 x 1536 (QXGA), 2880 x 2880, 2880 x 2160, 4000 x 3000
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technologyUltra 3D noise reduction
Image stabilizerYes
3D NR (Noise Reduction)Yes
Gain control typeAuto/Manual
Automatic gain controlYes
Back Light Compensation (BLC)Yes
Bit rate3 Kbps - 9984 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Full HDYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
Headphone outputs1
DC-in jackYes
InterfaceRJ-45

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
Privacy protectionYes

Management features

Web-based managementYes
Web browserYes
Firmware upgradeableYes
Remotely operatedYes

Power

Power source typeDC, PoE
Power consumption (typical)12 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height47.7 mm
Diameter14.9 cm
Weight580 g

Packaging data

Package weight1 kg

Packaging content

Number of cameras1

Other features

Number of simultaneous users10 user(s)
