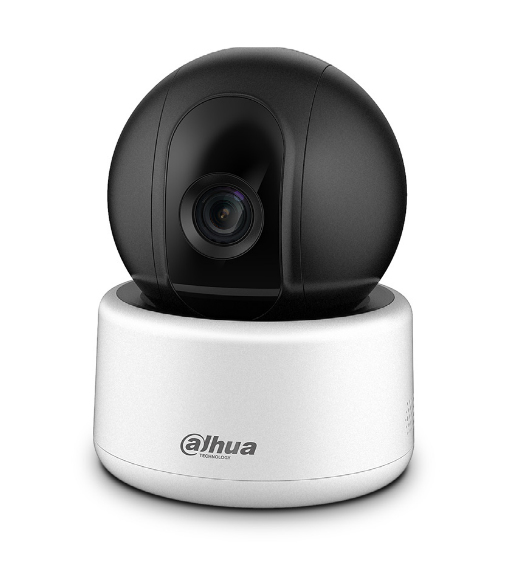

IPC-A22P security camera Spherical IP security camera Indoor
1920 x 1080 pixels Ceiling/Desk
Model IPC-A22PEAN 6939554919503
66 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight262 g
- ColourWhite
- Form factorSpherical
- Camera pan controlYes
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 262 g
- Colour
- White
- Form factor
- Spherical
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- IPC-A22P
- Part number
- IPC-A22P
- EAN / UPC
- 6939554919503
- Also known as
- Dahua Technology IPC-A22P security camera Spherical IP security camera Indoor 1920 x 1080 pixels Ceiling/Desk
Specifications
66 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wireless |
| Maximum operating distance | 50 m |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Remote viewing | Yes |
| Certification | CE, FCC, UL |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Ceiling/Desk |
| Product colour | White |
| LED indicators | Yes |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 90° |
| Lens viewing angle, vertical | 48° |
| Lens viewing angle, diagonal | 108° |
| Tilt angle range | -5 - 90° |
| Pan range | 0 - 355° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Digital zoom | 8x |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Frame rate | 15 fps |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | No |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 64 GB |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 7 W |
| DC output voltage | 5 |
| DC output current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 104 mm |
| Height | 96 mm |
| Weight | 262 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | USB |
| Screws included | Yes |
| Manual | Yes |
