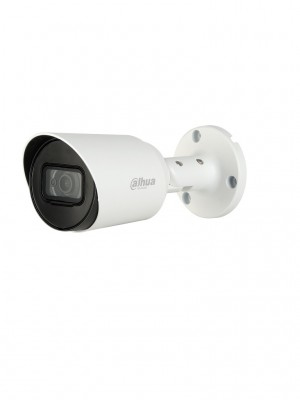

Lite HFW1400TN-0280B-S3 security camera Box CCTV security camera Indoor & outdoor
2560 x 1440 pixels Wall
Model HFW1400TN-0280B-S3EAN 6939554959509
55 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight370 g
- ColourWhite
- Form factorBox
- Camera pan controlNo
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 370 g
- Colour
- White
- Form factor
- Box
- Camera pan control
- No
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HFW1400TN-0280B-S3
- Part number
- HFW1400TN-0280B-S3
- EAN / UPC
- 6939554959509
- Also known as
- Dahua Technology Lite HFW1400TN-0280B-S3 security camera Box CCTV security camera Indoor & outdoor 2560 x 1440 pixels Wall
Specifications
55 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | No |
| Camera tilt control | No |
| Minimum illumination | 0.03 lx |
| Lens viewing angle, horizontal | 76.4° |
| Lens viewing angle, vertical | 41.6° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/25 - 100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2560 x 1440 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 4 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 176 mm |
| Depth | 72.4 mm |
| Height | 72.5 mm |
| Weight | 370 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 480 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
