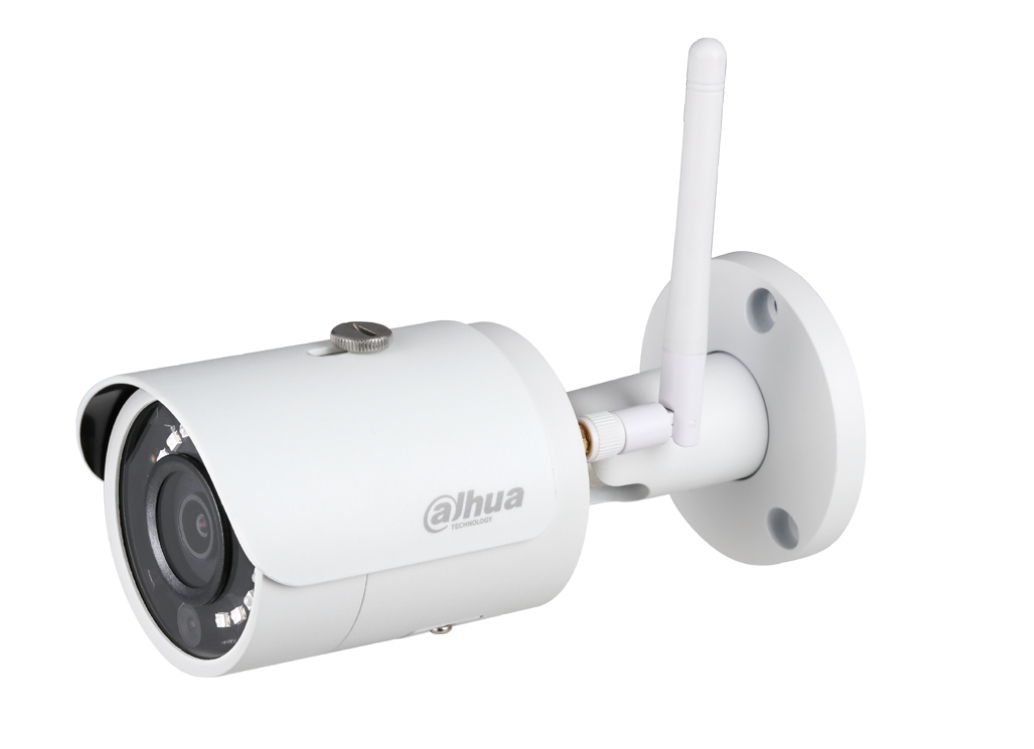

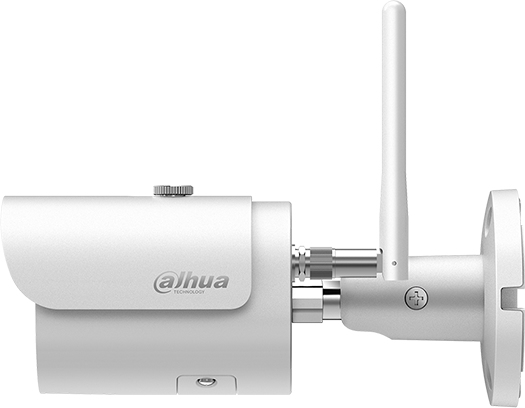

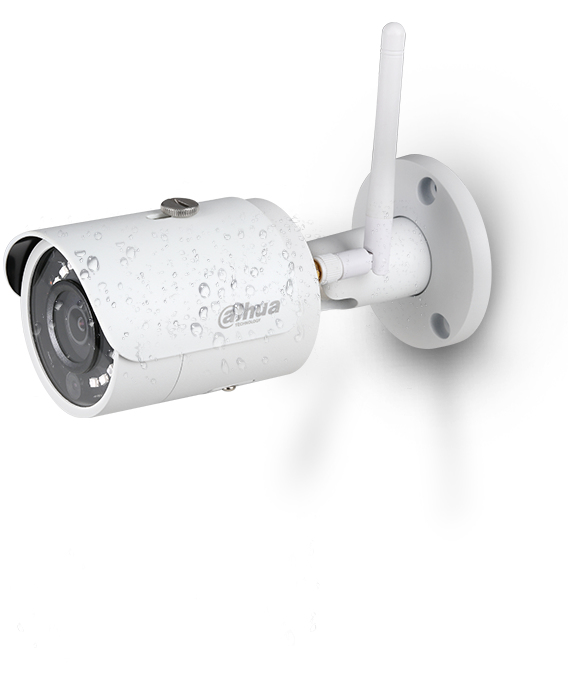

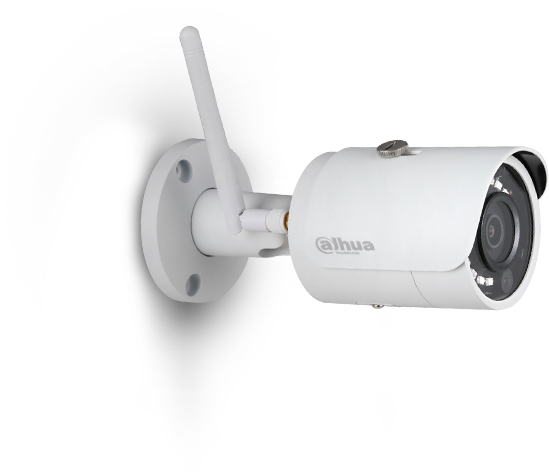

HFW1235S-W Bullet IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model HFW1235S-WPart no. IPC-HFW1235S-W
51 specifications
- ConnectivityWired & Wireless
- TypeIP security camera
- Weight445 g
- ColourWhite
- Form factorBullet
- Sensor typeCMOS
Overview
- Connectivity
- Wired & Wireless
- Type
- IP security camera
- Weight
- 445 g
- Colour
- White
- Form factor
- Bullet
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HFW1235S-W
- Part number
- IPC-HFW1235S-W
- Also known as
- Dahua Technology HFW1235S-W Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
51 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired & Wireless |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Antenna type | External |
| Antennas quantity | 1 |
| Certification | CE, FCC, UL |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 16x |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.265 |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 6.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 7.85 cm |
| Length | 127.8 mm |
| Weight | 445 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | DC, LAN (RJ-45) |
| Screws included | Yes |
| Manual | Yes |
