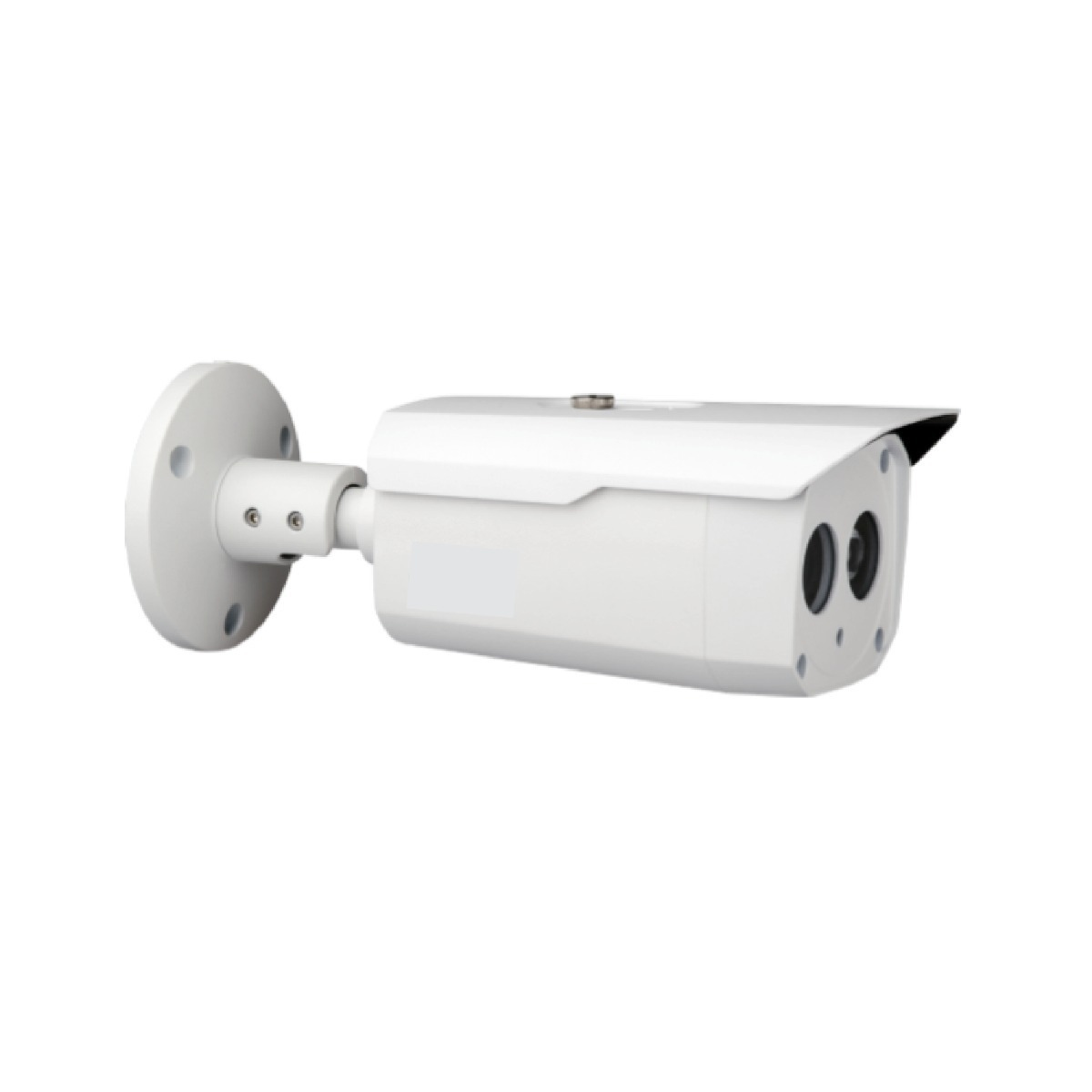

Consumer HFAW1400B36 security camera Bullet CCTV security camera Indoor & outdoor
Model HFAW1400B36
58 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight580 g
- Form factorBullet
- Camera pan controlNo
- Sensor typeCMOS
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 580 g
- Form factor
- Bullet
- Camera pan control
- No
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HFAW1400B36
- Part number
- HFAW1400B36
- Also known as
- Dahua Technology Consumer HFAW1400B36 security camera Bullet CCTV security camera Indoor & outdoor
Specifications
58 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Languages support | Multi |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | No |
| Camera tilt control | No |
| Minimum illumination | 0.03 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 84° |
| Tilt angle range | 0 - 87° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/25 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2688 x 1520 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 2 |
| Fixed focus | Yes |
| Maximum aperture number | 2 |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Full HD | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | BNC |
Security
| Specification | Value |
|---|---|
| Detection angle | 84° |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 4.1 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.4 mm |
| Depth | 241.8 mm |
| Height | 90.4 mm |
| Weight | 580 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 710 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
