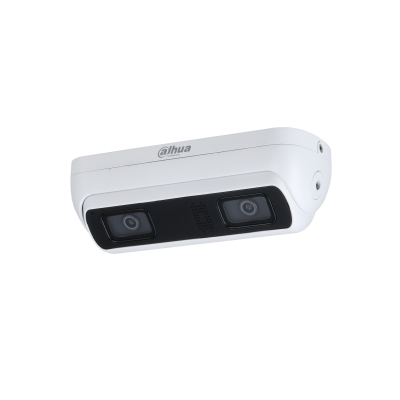

WizMind HDW8341XP-BV-3D-0360B IP security camera Outdoor
2048 x 1536 pixels Ceiling/wall
Model HDW8341XP-BV-3D-0360BPart no. IPC-HDW8341XP-BV-3D-0360B
85 specifications
- Memory2048 MB
- ConnectivityWired
- TypeIP security camera
- Weight810 g
- ColourBlack, White
- Mounting typeCeiling/wall
Overview
- Memory
- 2048 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 810 g
- Colour
- Black, White
- Mounting type
- Ceiling/wall
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HDW8341XP-BV-3D-0360B
- Part numbers
- IPC-HDW8341XP-BV-3D-0360B, DH-IPC-HDW8341XN-3D-0360B-S2
- Also known as
- Dahua Technology WizMind HDW8341XP-BV-3D-0360B IP security camera Outdoor 2048 x 1536 pixels Ceiling/wall
Specifications
85 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | CE-LVD: EN62368-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
Design
| Specification | Value |
|---|---|
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 79° |
| Lens viewing angle, vertical | 57° |
| Lens viewing angle, diagonal | 104° |
| Tilt angle range | 0 - 70° |
| White balance | Auto, Custom modes, Manual, Natural, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Detect distance | 64 m |
| Observe distance | 25.6 m |
| Recognize distance | 12.8 m |
| Identify distance | 6.4 m |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 1.3 m |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Total megapixels | 3 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 3 kbps - 17664 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 2.0 channels |
| Audio output channels | 1.0 channels |
| Voice codecs | G.711Mu, G.711a, G.723, G.726 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x |
| Supported network protocols | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Internal memory | 2048 MB |
| ROM capacity | 4000 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
Security
| Specification | Value |
|---|---|
| Intelligent Video Surveillance (IVS) system features | Face detection, Intrusion, Tripwire |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 3.5 W |
| Power consumption (max) | 9.1 W |
| Power consumption (Power over Ethernet (PoE)) | 10.6 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 78 mm |
| Depth | 204 mm |
| Height | 61.5 mm |
| Weight | 810 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.19 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
